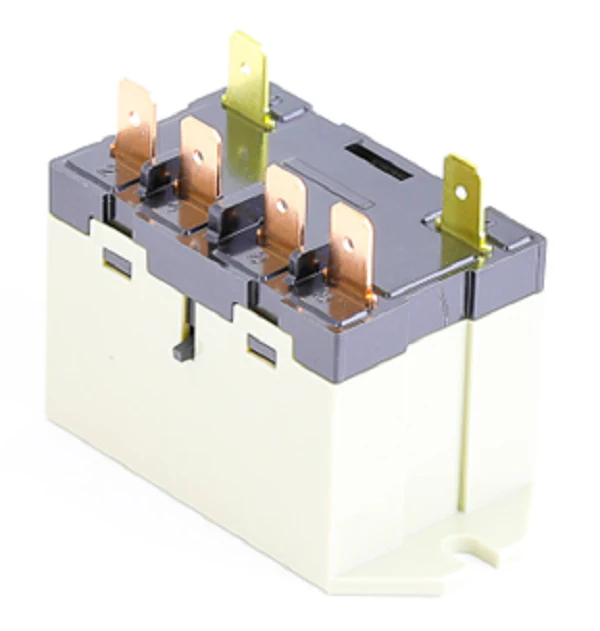

Omron G7L-2A-TUBJ-CBDC12 Relay
The Omron G7L-2A-TUBJ-CBDC12 Relay is a heavy-duty DPST-NO magnetic power relay engineered for high-capacity switching in demanding HVACR and industrial applications. This 25 Amp high capacity power relay features a 12VDC coil and is designed with dual Form A (Normally Open) contacts, providing reliable high-dielectric strength capable of handling momentary voltage drops without contact chattering. Built with quick-connect terminals (#250) and an upper bracket mounting (UB) configuration, it ensures a secure, vibration-resistant installation in compressor circuits or heater controllers. The integrated test button (J-type) allows technicians to manually verify circuit continuity during commissioning or troubleshooting. Utilizing UL Class B insulation materials, this Omron G7L series relay is rated for a wide temperature range and is particularly effective for managing inductive loads in air conditioning and refrigeration systems where space and durability are critical factors for field performance.
Key Benefits:- High switching capacity: Rated for up to 25A at 240VAC, making it ideal for large inductive motor and heater loads.
- Manual Override: Features a physical test button for quick diagnostic checks without requiring coil activation.
- Voltage drop resilience: Engineered to prevent contact chatter during supply fluctuations of up to 50% of the rated voltage.
- Streamlined Mounting: The upper bracket mounting flange simplifies panel-mount installation in tight HVAC control cabinets.
- Durable Construction: Uses flame-resistant UL94V-0 materials and Silver (Ag) alloy contacts to minimize contact resistance.
- Can the G7L-2A-TUBJ-CBDC12 replace older G7L models? Yes, provided the coil voltage is 12VDC and the mounting footprint matches the upper bracket or E-bracket requirements.
- What are the primary applications for this DPST-NO relay? It is standard for HVAC compressors, heat pump sequencers, water heater controllers, and lighting circuits requiring double-pole switching.
- What terminal size does this unit use? This model uses standard 0.250-inch quick-connect terminals for fast and secure wiring.
