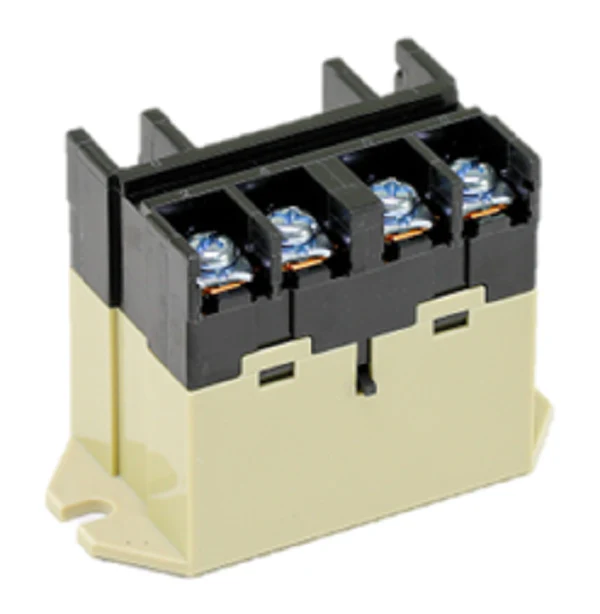

Omron G7L-2A-BUBJ-CBAC24 Relay
The Omron G7L-2A-BUBJ-CBAC24 is a specialized high capacity power relay engineered for heavy-duty HVACR and industrial motor control applications. This DPST-NO relay features a 24Vac coil and is rated for a 25 Amp resistive load, making it a reliable solution for managing high-inrush currents in compressors and heating elements. Built with a built-in test button, it allows technicians to manually verify circuit continuity during commissioning or troubleshooting. The upper bracket mounting design and screw terminals ensure secure mechanical installation and robust electrical connections in vibration-heavy environments. This model is specifically designed to handle momentary voltage drops down to 50% of the rated coil voltage, preventing contact chatter and premature wear. Its Class B insulation and flame-retardant construction meet stringent safety standards for commercial equipment, providing a stable switching interface for automated HVAC control systems and industrial machinery.
Key Technical Benefits
- High Switching Capacity: Handles up to 25A at 240VAC, ideal for inductive loads and motor starting.
- Manual Override: Integrated test button facilitates rapid diagnostic checks without energizing the control circuit.
- Voltage Stability: High-performance coil design resists contact bounce during fluctuations in 24V control power.
- Secure Integration: Screw terminal connections provide high torque retention for heavy-gauge field wiring.
- Durable Infrastructure: DPST-NO contact configuration ensures clean breaking of both poles in high-voltage circuits.
Common Questions
Can this relay replace a standard contactor in a condensing unit?
Yes, provided the FLA/LRA ratings of the compressor do not exceed the 25A rating of the G7L-2A-BUBJ-CBAC24. It is frequently used for auxiliary heat or fan motor control.
What is the benefit of the -CB suffix in the part number?
The "CB" indicates a specific contact gap and insulation rating designed to meet higher safety standards for power switching applications.
Is the mounting bracket removable?
This specific model features an upper bracket mounting configuration intended for surface or panel installation; ensure your enclosure has adequate clearance for the top-mount footprint.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
