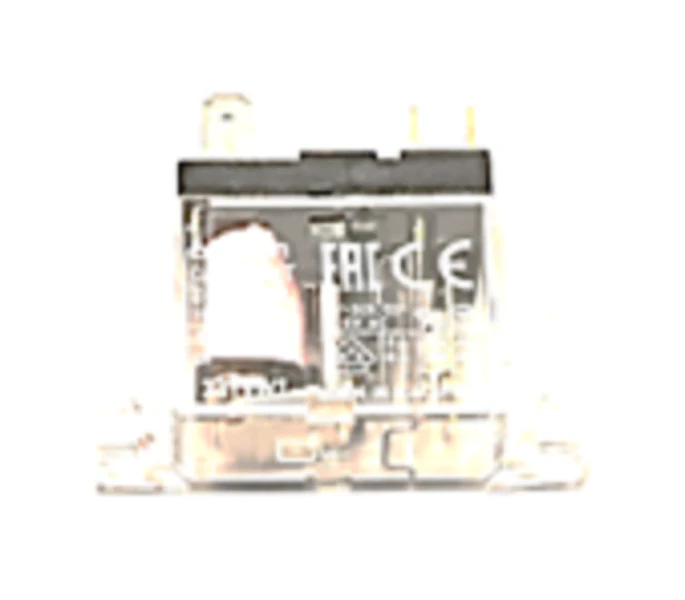

Omron G2R-1A-T-AC24 Relay
The Omron G2R-1A-T-AC24 is a professional-grade SPST-NO power relay designed for demanding HVACR control circuits and industrial automation. Operating on a 24VAC coil voltage, this unsealed general-purpose relay provides a reliable 10A switching capacity, making it a standard choice for controlling small motors, solenoids, and heating elements. The single-pole single-throw configuration is optimized for high-inrush current handling, while the quick-connect terminals ensure efficient field installation and secure mechanical connections. This switching relay features a 5,000V dielectric strength between the coil and contacts, protecting sensitive control boards from surges. Engineers and contractors prefer the G2R-1A-T-AC24 for its high sensitivity and low power consumption. This general purpose power relay is a drop-in replacement for many OEM control applications where AC24 coil performance and 10 amp relay durability are required for long-term operational stability in non-sealed environments.
Technical Benefits for Contractors
- High Dielectric Strength: Features 5,000V insulation between coil and contacts to prevent circuit cross-talk and equipment damage.
- Optimized Contact Rating: Supports 10A resistive loads at 250VAC/30VDC, suitable for various HVAC control relay applications.
- Quick-Connect Terminals: Simplifies wiring in the field, reducing labor time during relay replacement or panel builds.
- Robust SPST-NO Configuration: Provides clean, reliable switching for normally open circuits under continuous load.
- Compact Footprint: Designed for high-density mounting without sacrificing thermal dissipation or mechanical reliability.
Common Installation Questions
What is the maximum switching voltage for this relay?
The G2R-1A-T-AC24 is rated for a maximum switching voltage of 380VAC and 125VDC, allowing for versatile integration into secondary control loops.
Can this relay be used in high-humidity environments?
This is an unsealed, flux-protection type relay. For environments with excessive moisture or chemical exposure, a fully sealed version of the Omron G2R series would be more appropriate.
Are the quick-connect terminals compatible with standard spade connectors?
Yes, the 10A power relay features standard 4.75mm (0.187 inch) terminals, compatible with common field-applied female disconnects.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
