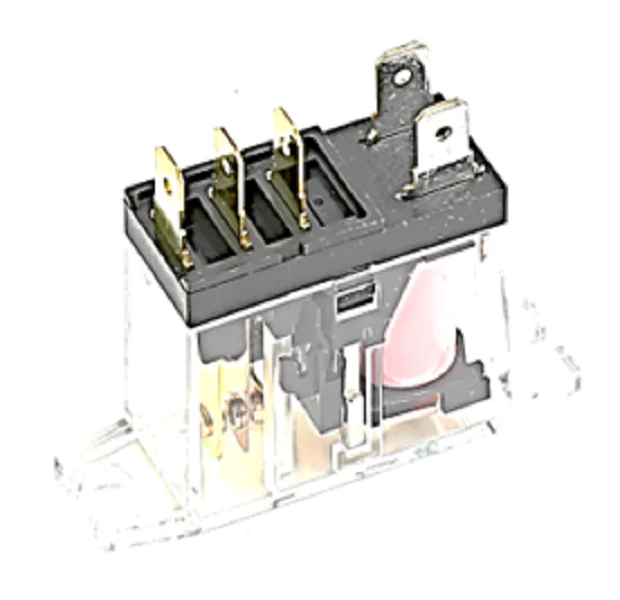

Omron G2R-1-T-AC24 Relay
The Omron G2R-1-T-AC24 is a professional-grade, SPDT power relay engineered for reliable switching in HVACR control circuits and industrial automation panels. This 24VAC plug-in relay features high-capacity 10A contacts (rated at 5A for specific inductive loads) and quick-connect terminals, ensuring a secure electrical connection and reduced installation time for field technicians. Built with a creepage distance of 8.0 mm between coil and contacts, this relay provides superior insulation and dielectric strength, making it ideal for managing inductive loads in harsh environments. The unsealed, flux-resistant construction allows for consistent performance in standard electrical enclosures where 24V control voltage is the baseline. Whether you are replacing a failed single pole double throw relay or integrating a new logic controller, this Omron component offers the mechanical endurance and high-sensitivity coil required for high-duty cycle applications without specialized mounting hardware.
Key Technical Benefits
- High Dielectric Strength: Features 5,000V AC insulation between coil and contacts for enhanced circuit protection.
- Quick-Connect Terminals: Simplifies wiring for contractors, providing a rigid #187 terminal interface.
- Compact Footprint: Efficient power relay design fits into tight control cabinets and standard relay bases.
- Vibration Resistance: Validated for high-vibration HVAC environments to prevent contact chatter or premature failure.
- Industry Standards: Meets UL, CSA, and VDE requirements for industrial switching equipment.
Common Questions
What is the maximum switching capacity for the G2R-1-T-AC24?
This general purpose relay is rated for a maximum switching current of 10A at 250VAC for resistive loads, though it is commonly applied at 5A for increased reliability in HVAC inductive circuits.
Can this relay replace a standard G2R-1-S series model?
The "T" designation indicates quick-connect terminals. Ensure your current housing or wiring harness supports spade connectors rather than PCB mounting or standard pin-type sockets.
Is the coil polarity-sensitive?
Since this is a 24VAC coil relay, there is no polarity requirement for the coil leads, allowing for flexible integration into alternating current control loops.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
