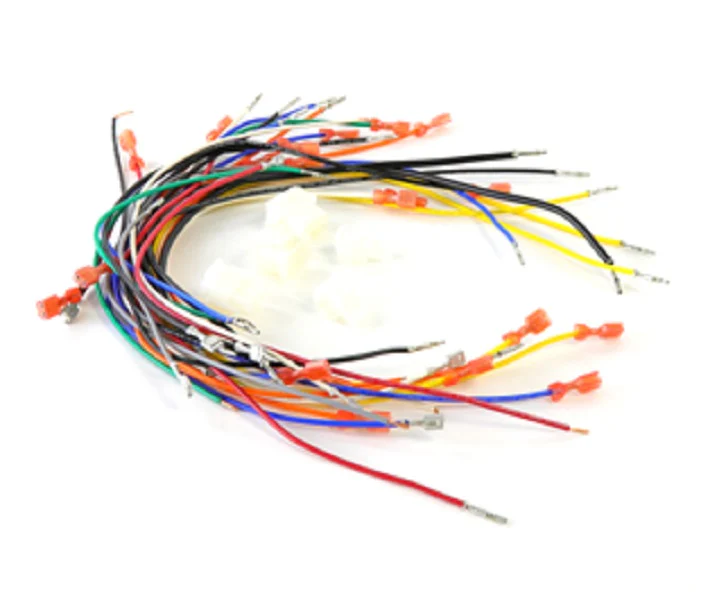

Nordyne D07730R Wire Harness
The Nordyne D07730R Wire Harness is a critical OEM replacement part designed specifically for M1M series furnaces, ensuring seamless HVAC electrical system integration. This high-grade wiring harness assembly facilitates direct connection between the furnace control board, sensors, and power terminals, eliminating the need for manual cable management or custom pin-outs. Engineered for a furnace wire harness replacement, this component is essential for technicians addressing intermittent signal loss or burnt-out connector plugs on M1MA, M1MB, M1MC, and M1MD mobile home furnace units.
Constructed with durable insulation and precision-molded electrical connectors, the D07730R is optimized for high-temperature furnace environments. It supports both AC and DC power distribution, providing reliable voltage paths for the furnace blower motor and combustion blower circuits. By utilizing this genuine Nordyne replacement, contractors maintain the integrity of the original system design, ensuring that all furnace control board wiring aligns with factory specifications for 16 ft applications and standard high-voltage interfaces.
Key Benefits:- Precise OEM Fit: Designed as a direct application for Nordyne M1M series furnaces, including M1MA-056, M1MB-070, and M1MD-090 models.
- Enhanced Signal Reliability: Maintains steady communication between heating system controls and safety sensors to prevent nuisance lockouts.
- Durable Construction: Built with heavy-duty wire gauges and resilient connector plugs to withstand thermal cycling and vibration.
- Plug-and-Play Installation: Pre-configured looms allow for rapid harness replacement during field service calls without the need for stripping or crimping.
- Which furnace models is this harness compatible with? This part is the specific harness for Nordyne M1M series units, widely used in mobile home heating systems.
- Can this harness replace damaged blower motor wiring? Yes, this complete assembly includes the necessary leads for standard motor and sensor connections within the furnace cabinet.
- Does this include the necessary plugs for the control board? It features the factory-standard multi-pin connectors required for direct interfacing with compatible Nordyne boards.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $43.66
-65%$43.66
$15.28Nordyne D07730R Wire Harness
