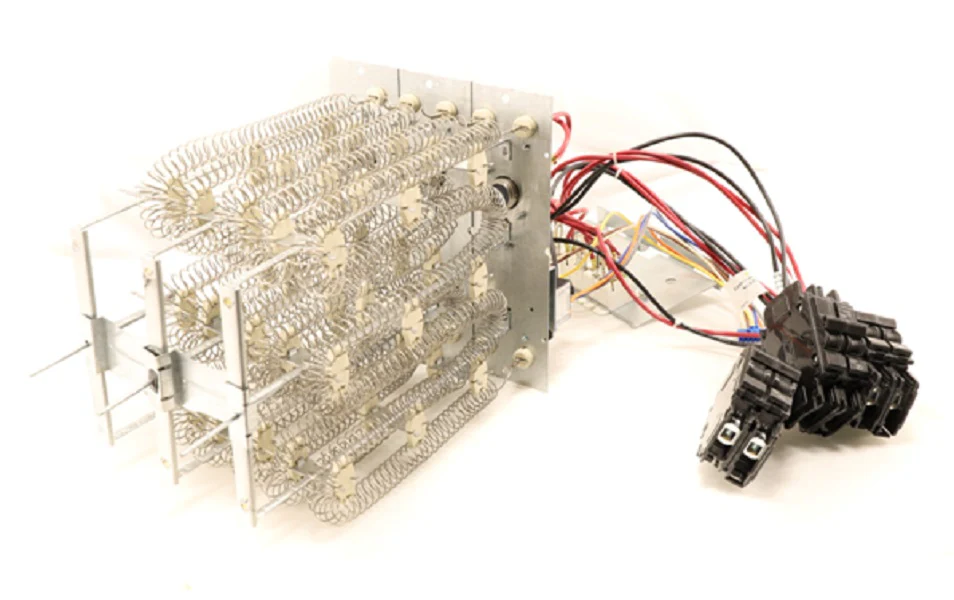

Nordyne 922530 Heat Strip Kit
The Nordyne 922530 Heat Strip Kit is a heavy-duty 25KW electric heater engineered specifically for integration with 230V single-phase HVAC systems. As a veteran-grade field replacement, the 922530 serves as the direct OEM successor to legacy part numbers 904417 and H6HK025H-31. This multi-bank heating assembly is designed for high-capacity auxiliary heat or primary emergency heat applications in various air handler configurations. Built with high-grade nickel-chromium heating elements, this 25KW heat kit ensures rapid thermal response and uniform heat transfer across the evaporator coil. The unit features built-in HACR circuit breakers for overcurrent protection, streamlining the installation process by eliminating the need for external disconnects in many applications. Designed for a "plug-and-play" fit, it utilizes a polarized molex plug for control wiring, ensuring correct phasing and reducing field wiring errors. This 230v 1ph heat strip is compatible with B6 series air handlers and residential packaged units, maintaining critical safety clearances and air-side pressure drops within manufacturer specifications.
Key Benefits for HVAC Contractors- Direct OEM Replacement: Drop-in compatibility for Nordyne 904417 and H6HK025H-31, ensuring zero-clearance fitment in B6BM and B6EM cabinets.
- Integrated Safety: Equipped with dual 60-amp circuit breakers to satisfy NEC requirements for local disconnects on 25KW loads.
- Robust Construction: Precision-wound heating coils are supported by ceramic insulators to prevent sag and short circuits during high-temperature cycles.
- Simplified Wiring: Features a factory-harnessed 6-pin connector for seamless integration with the air handler control board and sequencer logic.
- Is the 922530 compatible with older B5 series air handlers? While primarily designed for B6 series cabinets, it may fit certain large-chassis high-capacity units; always verify the unit's rating plate for approved heater kit models before installation.
- What is the minimum blower speed required for a 25KW load? High-output 25KW kits typically require the highest available blower speed tap to prevent limit switch tripping and ensure proper CFM-to-KW ratios.
- Can this be used in 3-phase applications? No, this is a 230V single-phase specific component. Do not attempt to field-modify for 3-phase power.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
