Nordyne 922523 Heater Kit

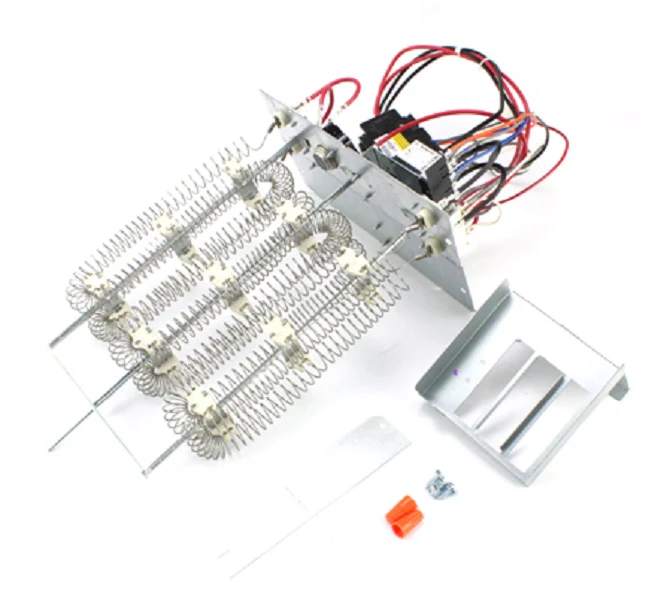

The Nordyne 922523 Heater Kit is a field-installed 8kW electric heat strip designed specifically for Nordyne, Broan, Miller, and Intertherm air handlers and packaged units. This supplemental heat kit provides 27,300 BTUs of heating capacity, making it an ideal solution for residential split systems or packaged gas/electric units requiring auxiliary heat. The assembly features heavy-duty nickel-chromium heating elements supported by ceramic insulators to ensure thermal stability and longevity under high-static conditions. This kit includes integrated circuit breakers, which function as a local disconnect to meet NEC requirements and simplify the high-voltage wiring process. For contractors performing a Nordyne heater kit installation, this unit offers a plug-and-play fitment into the blower compartment, utilizing internal limit switches to provide reliable overtemperature protection. Engineered for 208/240V single-phase applications, the 922523 is the standard OEM replacement electric heater for maintaining system performance during defrost cycles or primary heating stages.
Key Benefits for HVAC Professionals- Direct OEM Fit: Ensures seamless mechanical and electrical integration with Nordyne 922523 compatible units without field modifications.
- Integrated Overcurrent Protection: Built-in 60-amp circuit breakers eliminate the need for external disconnects on most residential installs.
- High-Grade Construction: Open-wire elements provide rapid heat transfer and are secured to resist vibration and sagging.
- Safety Certified: Includes primary and secondary thermal limit controls to prevent cabinet overheating during low-airflow conditions.
What is the proper circuit breaker sizing for an 8kW Nordyne heater kit?
This 8kW kit typically requires a 45 to 50-amp dedicated circuit breaker at the main panel, depending on the specific air handler blower motor load and local electrical codes.
Does this heater kit include the necessary wiring harness?
Yes, the Nordyne 922523 comes with the multi-pin molex connector and power leads required for a direct connection to the factory control board.
Can this kit be installed in both upflow and downflow configurations?
Yes, this Nordyne electric heat strip is designed for multi-poise applications, provided the air handler is rated for the specific kilowatt output in that orientation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
