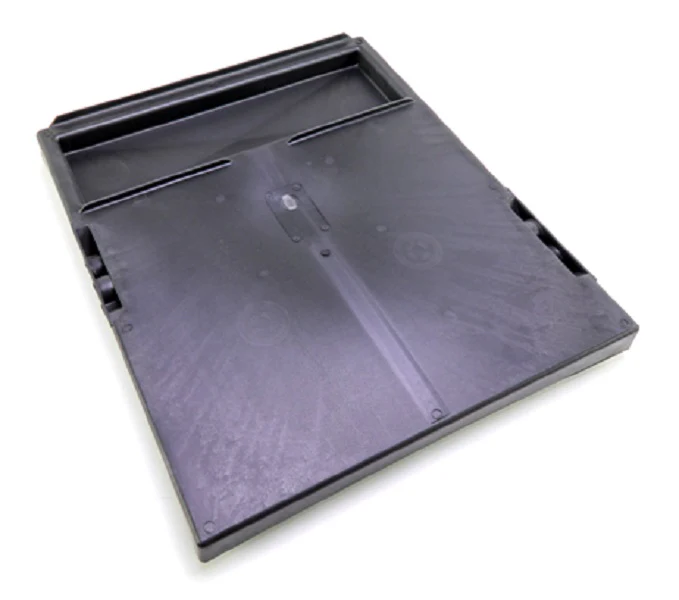

Nordyne 920266 Drain Pan
Secure the integrity of horizontal HVAC installations with the Nordyne 920266 Horizontal Drain Pan. Engineered as a high-performance OEM replacement condensate pan, this component is essential for managing moisture discharge in Nordyne, Intertherm, Miller, and Frigidaire horizontal air handlers and evaporator coil configurations. Built from heavy-duty corrosion-resistant material, the 920266 is designed to withstand the thermal cycling and constant moisture exposure typical of modern residential split systems.
For veteran technicians, the Nordyne 920266 provides a reliable fit for 9200 Series and 9400 Series unit heaters. Measuring approximately 9-1/2" x 26", this horizontal evaporator drain pan features a 3/4" NPSC connection, optimized for rapid condensate management without the risk of stagnant water or overflow into the secondary pan. By pairing this with the recommended secondary HVAC drain line and ensuring a proper slope, installers can effectively prevent structural water damage in finished attics or crawlspaces where drainage precision is critical. This genuine Nortek global HVAC part ensures the system maintains peak operational efficiency while protecting the primary furnace cabinet from moisture intrusion.
Key Benefits for Technicians:- Optimized Drainage Geometry: Engineered with a built-in slope to facilitate complete water evacuation, preventing biological growth and scale buildup.
- Broad OEM Compatibility: Directly compatible with Nortek, Miller, Intertherm, and Tappan units, ensuring an airtight fit without field modifications.
- Durable Construction: Fabricated from materials resistant to the acidic condensate produced during high-efficiency cooling cycles.
- Standard 3/4" NPSC Port: Simplifies integration with existing PVC condensate traps and secondary safety switches.
Is the 920266 compatible with all horizontal air handlers?
This pan is specifically designed for Nordyne-manufactured units including the 9200 and 9400 series. Always verify the specific coil dimensions and model numbers (e.g., G6, M7, or C7 series) to ensure exact fitment.
What is the best way to prevent cracking during installation?
Connections at the 3/4" NPSC port should be hand-tightened only. Applying excessive torque with a pipe wrench or over-tightening PVC fittings can stress the housing and lead to hairline fractures.
Does this pan require additional support for long spans?
When installing in a horizontal right or left configuration, ensure the unit is level and the pan is securely seated in the cabinet brackets to prevent sagging, which can lead to "slugging" or overflow issues.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
