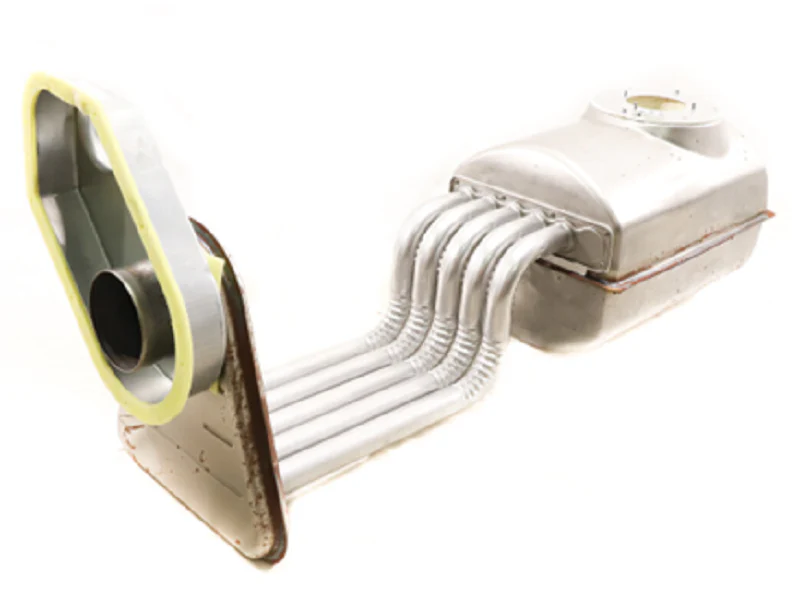

Nordyne 903422 Heat Exchanger
The Nordyne 903422 Heat Exchanger is an essential OEM replacement component engineered for high-efficiency thermal transfer in residential and light commercial forced-air systems. As a veteran-preferred HVAC furnace part, this aluminized steel assembly is designed to withstand the rigorous thermal cycling of modern heating duty cycles, providing superior corrosion resistance. This gas heat exchanger serves as the critical safety barrier between combustion byproducts and the supply airstream, ensuring zero cross-contamination of flue gases with indoor air. Specifically engineered for Nordyne furnace repair, it is compatible with N3300 and N4350 series units and M1SB 086A BW models. This single-pass furnace heat exchanger features an 87.0% efficiency rating, optimizing BTU output while reducing energy consumption across the footprint of the heat exchanger core. For contractors performing a Nordyne 903422 replacement, this genuine OEM part ensures precise port alignment and optimal airflow across the integrated shell-and-tube fins.
Key Benefits for Technicians:- OEM Compatibility: Replaces Nordyne 903422 and cross-references with part number 277622 for a direct-fit installation in M1SB and N3300 series furnaces.
- Superior Thermal Transfer: Constructed with aluminized steel and brazed fins to maximize heat dissipation and maintain system efficiency.
- Enhanced Safety: Precision-welded seams prevent carbon monoxide leakage into the living space, maintaining strict indoor air quality standards.
- Heavy-Duty Build: Designed with a corrugated stainless steel shell to resist oxidation and thermal stress during peak high-temperature operation.
- Industrial Grade Reliability: Specifically tailored for technicians requiring a drop-in furnace component that meets original factory specifications for pressure drop and static load.
Is the Nordyne 903422 compatible with all M1SB models?
This heat exchanger is specifically confirmed for the M1SB 086A BW. Always verify your specific model and serial number before starting a teardown to ensure the secondary heat exchanger or cabinet height matches the 903422 configuration.
What are the signs that a Nordyne heat exchanger has failed?
Look for visible cracks in the heat exchanger tubes, heavy soot accumulation around the burners, or a rollout switch tripping. If an analyzer detects CO in the supply air or you observe a rolling flame during the blower start-up, the heat exchanger is likely compromised.
Does this unit come with the necessary mounting gaskets?
While the 903422 is the primary heat exchanger assembly, it is recommended to have a Nordyne HT-EXCHGASK kit on hand to ensure a gas-tight seal at the collector box and burner mounting plates during reassembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
