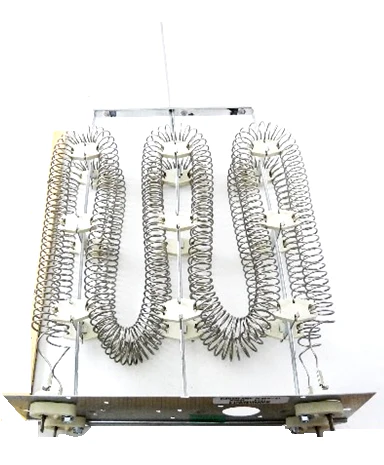

Nordyne 902823 Heat Strip
Equip your next service call with the Nordyne 902823 Heat Strip, a high-performance 10.8KW electric furnace heater kit designed for 240V configurations. This OEM assembly features a dual heating coil design engineered to deliver approximately 36,850 BTU, providing robust supplemental or primary heat for modular and mobile home environments. The Nordyne 902823 is a critical replacement component across several Nortek brands including Miller, Intertherm, and Revolv.
For field installation, the unit utilizes a standard 9.25-inch by 3.0-inch mounting plate with multi-directional screw holes for secure housing attachment. The bracket depth measures 11.25 inches, featuring a trim-to-fit guide rod that ensures compatibility within tight air handler cabinets. This assembly is the primary cross-reference for older part numbers such as 498192, 432722, and 631693. Integrating this 240V electric heat element maintains system airflow integrity while restoring the heating sequence to factory specifications without the need for extensive field modifications.
Key Benefits:- Precise Output: Delivers 10.8KW (~36,850 BTU) for consistent thermal performance.
- Broad Compatibility: Replaces Nordyne assembly #498192, 432722, 491222, and 631693.
- Heavy-Duty Construction: Features dual resistive coils designed for high-cycle modular heaters.
- Flexible Mounting: Side-mount and top/bottom screw holes provide adaptable installation.
- Universal Rod: Includes a guide rod that can be trimmed for exact depth adjustment in E1EH, E2EB, and E3 series furnaces.
- Does this include the limit switch? No, this assembly is the heating element and mounting plate; original limit switches like the 626458R should be reused or replaced separately.
- Is this compatible with 208V systems? While rated for 240V, operating on 208V will result in a derated wattage output (approximately 8.1KW).
- How do I handle a guide rod that is too long? The guide rod is specifically designed to be trimmed in the field to match the depth of your specific air handler model.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
