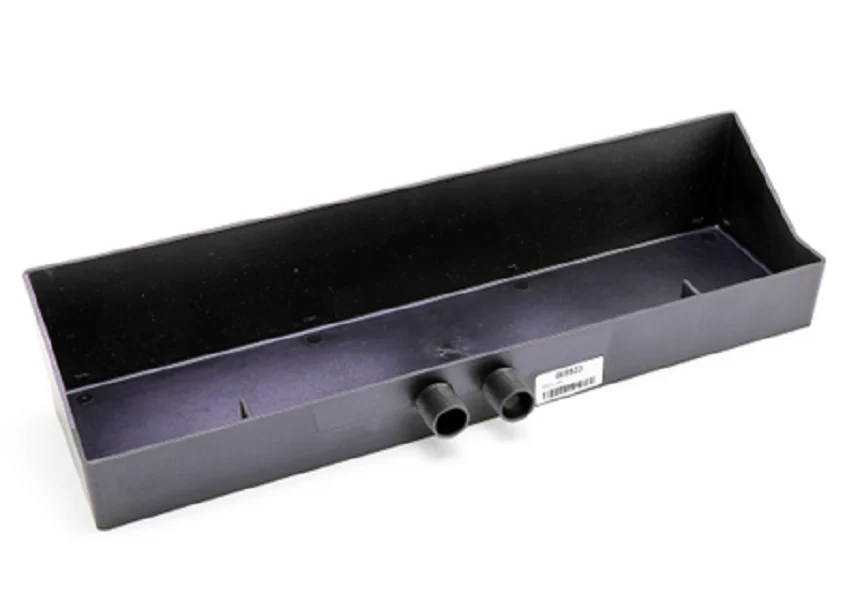

Nordyne 669923 Drain Pan
The Nordyne 669923 Drain Pan is a critical OEM replacement part designed for condensate management in specific Nortek Global HVAC residential units, including brands like Intertherm, Miller, and Gibson. As a veteran tech, you know that a cracked or fouled pan is a primary cause of secondary water damage in horizontal furnace applications and A-coil evaporator set-ups. This heavy-duty horizontal drain pan measures approximately 7-3/8" x 8-3/8" x 2-1/2", featuring an integral shield to efficiently capture and redirect moisture into the condensate drain line. Engineered for a precise fit, it eliminates the common clearance issues found with generic aftermarket pans while maintaining the required galvanized steel or high-temp composite durability needed for long-term reliability in varying thermal environments. When swapping this out, verify your coil footprint and ensure the primary and secondary 1-1/2 inch drain connections are correctly aligned to prevent air bypass or drainage stagnation, keeping your HVAC moisture control system within spec.
Key Benefits for the Jobsite:- Genuine OEM Compatibility: Specifically designed for Nordyne 6621A20 and 6621A50 air conditioners, ensuring a drop-in fit without field modifications.
- Corrosion Resistance: High-grade material construction provides superior resistance to standing water and chemical residues typically found in HVAC condensate systems.
- Enhanced Drainage Flow: Features optimized pitch and an integral shield to maximize water collection and prevent furnace water damage from secondary overflows.
- Multi-Brand Utility: Compatible with several Nortek brands including Intertherm, Miller, Frigidaire, and Westinghouse, making it a versatile stock item for service trucks.
Will this work in both vertical and horizontal configurations?
The Nordyne 669923 is primarily engineered for horizontal drain pan applications. Always confirm the orientation of your A-coil or evaporator assembly before installation to ensure the integral shield and outlet ports are positioned correctly for gravity drainage.
What are the exact dimensions for clearance checks?
The core dimensions are 7-3/8 inches by 8-3/8 inches with a 2-1/2 inch depth. This compact footprint is essential for fitting into tight HVAC cabinet spaces where standard universal pans often fail to seat properly.
What connection size does this pan use?
This unit features standard 1-1/2 inch connections, which are compatible with most local condensate plumbing codes and standard PVC drainage fittings used in residential HVAC service.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
