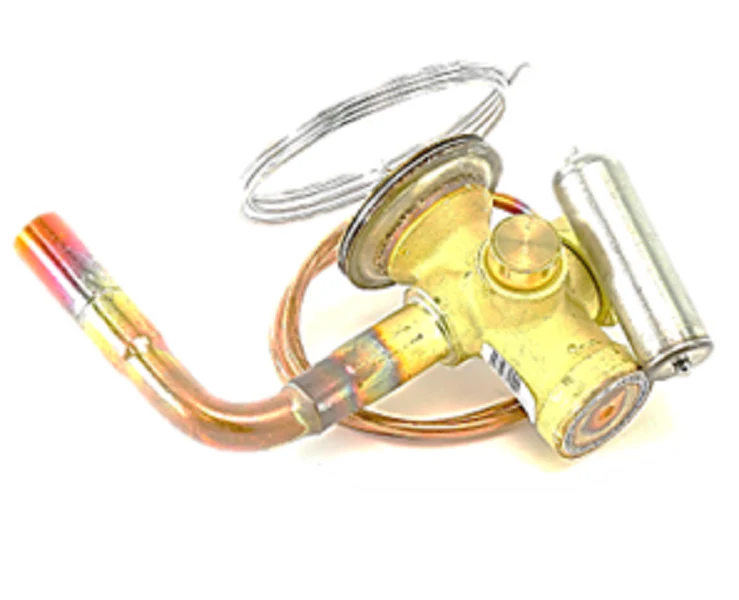

Nordyne 669568R TXV
The Nordyne 669568R TXV is a precision-engineered OEM R410A thermal expansion valve designed for specific 4-ton evaporator coils. As a direct replacement for 669568, this 4-ton expansion valve is a critical component for maintaining precise superheat control in high-efficiency cooling systems. In the field, we know that accurate refrigerant metering is the difference between a high-performing system and one plagued by evaporator icing or compressor floodback. This thermostatic expansion valve (TXV) utilizes a sensitive pressure-sensing mechanism and an external equalizer to modulate flow based on real-time load demands, ensuring the coil remains fully active without overshooting capacity.
Built for durability in commercial and residential R410A refrigerant systems, the 669568R Nordyne TXV features a robust bronze body and is compatible with a wide range of brands under the Nortek umbrella, including Intertherm, Miller, and Frigidaire. When troubleshooting low suction pressures, this genuine Nordyne 669568R ensures that the system maintains optimal thermal exchange and reduces unnecessary energy consumption. For the technician on a service call, using this OEM HVAC expansion valve guarantees the physical fit and flow characteristics required by the original manufacturer’s specifications, preventing the "hunting" issues often seen with generic alternatives.
Key Benefits for the Contractor:- Precise Superheat Regulation: Optimized for 4-ton R410A systems to maintain consistent 8°F to 12°F superheat, protecting the compressor and maximizing heat transfer.
- Wide Compatibility: Direct OEM replacement for numerous Nordyne, Intertherm, and Miller air handlers and packaged units.
- Technical Reliability: Features an external equalizer port for accurate sensing of evaporator pressure, critical for systems with significant pressure drops across the distributor.
- Improved System Efficiency: Regulates refrigerant flow to match cooling load, reducing high-side pressure spikes and lowering overall operating costs.
What are the symptoms of a failing Nordyne TXV?
Technicians typically observe low suction pressure with high superheat at the evaporator outlet, or in some cases, "hunting" where the valve opens and closes rapidly. If you see the evaporator coil icing up while subcooling remains within spec at the condenser, the 669568R TXV may be restricted or have lost its powerhead charge.
Is the 669568R compatible with older R-22 systems?
No. This valve is specifically calibrated for R410A refrigerant and a 4-ton capacity. Installing this on an R-22 system or a system with a different tonnage will result in improper metering and potential equipment damage.
Does this valve require brazing or is it a thread-on mechanical fitting?
The Nordyne 669568R typically utilizes mechanical fittings for the liquid line and distributor connections, requiring specific Teflon O-rings for a leak-free seal. Always use a backup wrench when tightening to prevent twisting the copper lines.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
