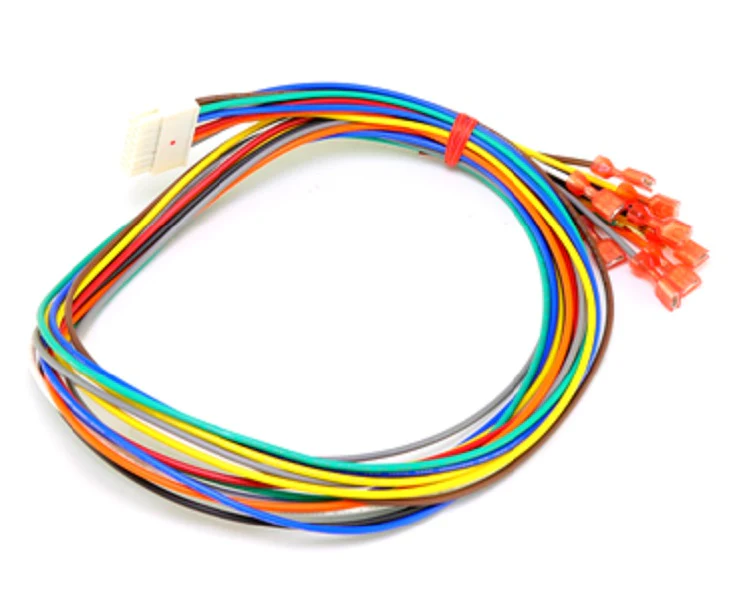

Nordyne 634686 Wire Harness
The Nordyne 634686 Wire Harness is a critical OEM replacement part designed for high-performance HVAC system communication. Engineered as a robust wiring network, this harness facilitates the precise transmission of 115V and 24V signals between the integrated control board, blower motor, and draft inducer. Built to withstand the thermal cycling and vibration inherent in furnace applications, it features high-grade insulation and precision-crimped terminals that prevent voltage drops and intermittent signal loss. This furnace wire harness is a direct-fit component for a wide range of brands under the Nortek Global HVAC umbrella, including Intertherm, Miller, and Frigidaire units. For technicians diagnosing a blower not running or a furnace not heating, replacing a compromised harness ensures the safety circuit remains closed and the system operates at peak efficiency. Trust this genuine Nordyne part for reliable continuity and exact pin-to-pin compatibility with your existing harness assembly.
- OEM Reliability: Guaranteed direct replacement for the original 634686 harness, ensuring correct wire gauge and connector sizing.
- Multi-Brand Compatibility: Fits Nordyne furnace parts and Nortek heating equipment across brands like Tappan and Maytag.
- Signal Integrity: Optimized for low-resistance connections between the control board, igniter, and safety switches.
- Enhanced Durability: Resists insulation breakdown caused by long-term exposure to high-temperature furnace cabinets.
Common Questions
Is this harness compatible with multiple Nordyne furnace brands?
Yes, the 634686 wire harness is used extensively across Intertherm, Miller, Frigidaire, and other Nordyne brands. Always verify the part number in your specific service manual to ensure a match.
Can a faulty wire harness cause the furnace to short cycle?
Faulty wiring or loose pins can disrupt the safety loop or thermostat signal, often leading to furnace short cycling or LED error codes on the control board. Replacing the 634686 harness resolves these irregular electrical failures.
Does this harness handle both high and low voltage signals?
Correct. This Nordyne wiring harness is designed to manage low voltage thermostat signals as well as line voltage power distribution to the motor and secondary components.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
