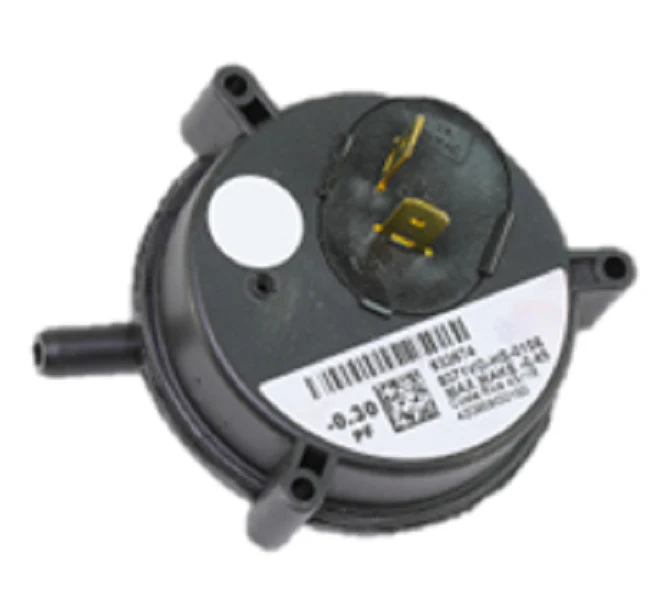

Nordyne 632674 Pressure Switch
The Nordyne 632674 Pressure Switch is a critical safety component designed specifically for condensate management in M7RL-045A and M7RL-072A gas furnaces. As a veteran-grade OEM replacement part, it effectively supersedes older part number 632492. This normally open (NO) switch features a factory-calibrated setpoint of 0.30" WC (Water Column), ensuring the system shuts down if a condensate drain blockage or overflow occurs. Built for high-efficiency Intertherm, Miller, and Nordyne units, this 0.30" pressure switch utilizes a dry-contact circuit to communicate directly with the control board, preventing HVAC system lockout and potential water damage to the heat exchanger or blower compartment. The 632674 condensate switch includes a dual-terminal wiring interface and a single sensing port for vacuum or pressure monitoring via OEM flexible tubing. Relying on this precise safety bypass component ensures your diagnostic codes, such as pressure switch open faults, are resolved with original equipment specifications.
Key Benefits- Direct replacement for obsolete part number 632492, ensuring seamless mechanical and electrical fit.
- Calibrated 0.30" WC trip point designed for precise condensate overflow protection.
- Robust metal bracket and pigtail connectors included for simplified field installation.
- Prevents common furnace flash codes associated with obstructed condensate drain lines.
- Maintains OEM system integrity for mobile home and residential gas furnaces.
- Which furnace models use the 632674 switch? It is primarily found in Nordyne M7RL series furnaces (045A and 072A variants) but also fits several Intertherm and Miller units.
- What causes a flash code for this pressure switch? Common issues include blocked condensate drains, pinched sensing tubing, or a failing inducer motor unable to generate sufficient vacuum.
- Can I use a higher WC rated switch? No. Using a switch with a different Water Column rating can compromise system safety and lead to improper drainage or premature lockout.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $22.70
-65%$22.70
$7.94Nordyne 632674 Pressure Switch
The Nordyne 632674 Pressure Switch is a critical safety component designed specifically for condensate management in M7RL-045A and M7RL-072A gas furnaces. As a veteran-grade OEM replacement part, it effectively supersedes older part number 632492. This normally open (NO) switch features a factory-calibrated setpoint of 0.30" WC (Water Column), ensuring the system shuts down if a condensate drain blockage or overflow occurs. Built for high-efficiency Intertherm, Miller, and Nordyne units, this 0.30" pressure switch utilizes a dry-contact circuit to communicate directly with the control board, preventing HVAC system lockout and potential water damage to the heat exchanger or blower compartment. The 632674 condensate switch includes a dual-terminal wiring interface and a single sensing port for vacuum or pressure monitoring via OEM flexible tubing. Relying on this precise safety bypass component ensures your diagnostic codes, such as pressure switch open faults, are resolved with original equipment specifications.
Key Benefits- Direct replacement for obsolete part number 632492, ensuring seamless mechanical and electrical fit.
- Calibrated 0.30" WC trip point designed for precise condensate overflow protection.
- Robust metal bracket and pigtail connectors included for simplified field installation.
- Prevents common furnace flash codes associated with obstructed condensate drain lines.
- Maintains OEM system integrity for mobile home and residential gas furnaces.
- Which furnace models use the 632674 switch? It is primarily found in Nordyne M7RL series furnaces (045A and 072A variants) but also fits several Intertherm and Miller units.
- What causes a flash code for this pressure switch? Common issues include blocked condensate drains, pinched sensing tubing, or a failing inducer motor unable to generate sufficient vacuum.
- Can I use a higher WC rated switch? No. Using a switch with a different Water Column rating can compromise system safety and lead to improper drainage or premature lockout.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
