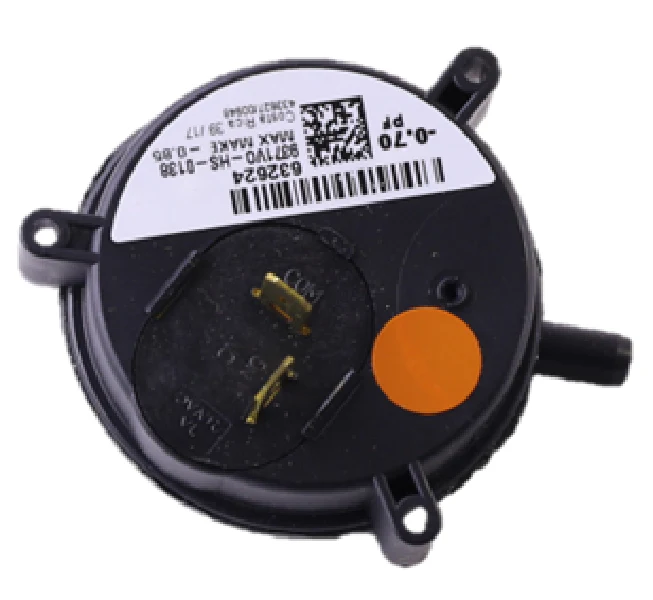

Nordyne 632624 Pressure Switch
The Nordyne 632624 Pressure Switch is a critical safety component designed for precise draft monitoring in gas-fired furnaces and HVAC systems. This SPST (Single Pole Single Throw) switch is calibrated to a -0.70" WC set point, ensuring the inducer motor establishes proper static pressure before allowing the ignition sequence to proceed. Engineered as a direct Nordyne replacement part, it features a 1/4" barb connection for standard pneumatic tubing and secure screw terminal connectors to prevent voltage drops or intermittent signals caused by vibration. As a normally open pressure switch, it provides reliable automatic operation within the furnace control string, maintaining system integrity by de-energizing the gas valve if venting becomes obstructed or the blower fails. For contractors performing HVAC furnace repair, this component ensures the appliance operates within specific OEM pressure specifications to prevent combustion issues or carbon monoxide hazards.
Key Benefits for Technicians:
- Exact Calibration: Factory-set at -0.70" WC to match original equipment operating curves and prevent nuisance tripping.
- Industrial Build: Features durable metal contact materials and a 2-way circuit type for stable electrical continuity in high-cycle environments.
- Standardized Fit: The 1/4" barb connection allows for a direct swap with existing vacuum lines without the need for adapters.
- Secure Termination: Integrated screw terminals provide a more robust mechanical connection than standard spade terminals in high-vibration inducer housings.
Common Technical Questions:
How do I verify if the Nordyne 632624 is the correct switch for my furnace?
Always check the part number stamped on the original switch or consult the cabinet wiring diagram. This switch is specifically rated for -0.70" WC; using a switch with a different water column rating can lead to dangerous delayed ignition or system lockout.
Can this SPST switch be used in place of a multi-terminal switch?
This is a normally open SPST switch with two screw terminals. It is designed specifically for circuits that require a simple "make" on pressure fall. If your existing switch has three terminals (SPDT), this unit may not be compatible with your control board logic.
What are the signs of a failing HVAC pressure switch?
Common indicators include the inducer motor running continuously without ignition, or the control board flashing a specific diagnostic code for 'Pressure Switch Did Not Close' or 'Open During Heat Run.'
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $26.86
-65%$26.86
$9.40Nordyne 632624 Pressure Switch
The Nordyne 632624 Pressure Switch is a critical safety component designed for precise draft monitoring in gas-fired furnaces and HVAC systems. This SPST (Single Pole Single Throw) switch is calibrated to a -0.70" WC set point, ensuring the inducer motor establishes proper static pressure before allowing the ignition sequence to proceed. Engineered as a direct Nordyne replacement part, it features a 1/4" barb connection for standard pneumatic tubing and secure screw terminal connectors to prevent voltage drops or intermittent signals caused by vibration. As a normally open pressure switch, it provides reliable automatic operation within the furnace control string, maintaining system integrity by de-energizing the gas valve if venting becomes obstructed or the blower fails. For contractors performing HVAC furnace repair, this component ensures the appliance operates within specific OEM pressure specifications to prevent combustion issues or carbon monoxide hazards.
Key Benefits for Technicians:
- Exact Calibration: Factory-set at -0.70" WC to match original equipment operating curves and prevent nuisance tripping.
- Industrial Build: Features durable metal contact materials and a 2-way circuit type for stable electrical continuity in high-cycle environments.
- Standardized Fit: The 1/4" barb connection allows for a direct swap with existing vacuum lines without the need for adapters.
- Secure Termination: Integrated screw terminals provide a more robust mechanical connection than standard spade terminals in high-vibration inducer housings.
Common Technical Questions:
How do I verify if the Nordyne 632624 is the correct switch for my furnace?
Always check the part number stamped on the original switch or consult the cabinet wiring diagram. This switch is specifically rated for -0.70" WC; using a switch with a different water column rating can lead to dangerous delayed ignition or system lockout.
Can this SPST switch be used in place of a multi-terminal switch?
This is a normally open SPST switch with two screw terminals. It is designed specifically for circuits that require a simple "make" on pressure fall. If your existing switch has three terminals (SPDT), this unit may not be compatible with your control board logic.
What are the signs of a failing HVAC pressure switch?
Common indicators include the inducer motor running continuously without ignition, or the control board flashing a specific diagnostic code for 'Pressure Switch Did Not Close' or 'Open During Heat Run.'
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
