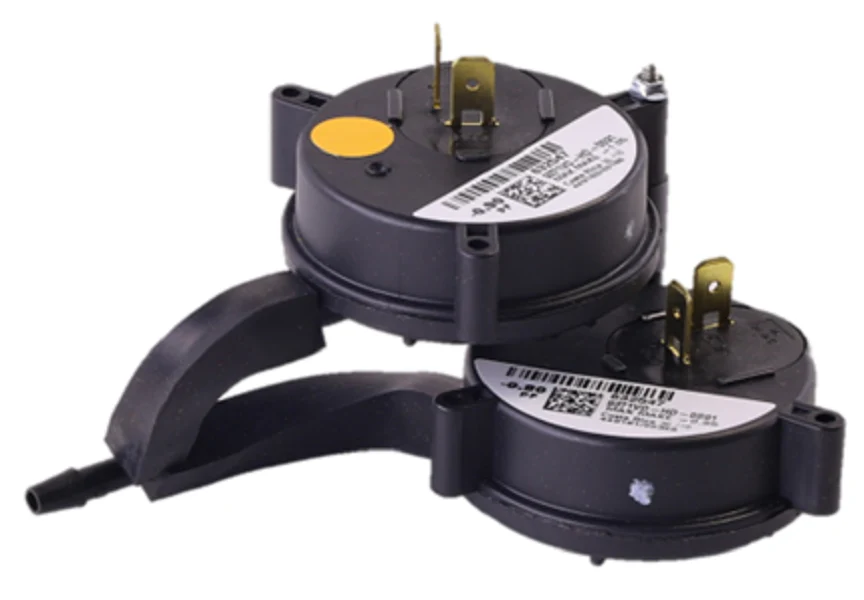

Nordyne 632547R Pressure Switch
The Nordyne 632547R Pressure Switch is a critical OEM furnace safety control engineered to monitor proper inducer motor draft and venting conditions in high-efficiency heating systems. This SPST (Single Pole, Single Throw) switch is factory-calibrated to a precise -0.90" WC (Water Column) set point, ensuring the combustion process only initiates when safe airflow thresholds are met. As a genuine Nordyne replacement part, it eliminates the calibration risks associated with universal aftermarket switches, providing the exact specifications required for Intertherm, Miller, and Frigidaire furnace models.
Technicians rely on the 632547R for troubleshooting ignition failure codes related to pressure switch stuck open or closed. Its robust diaphragm construction is designed to withstand the heat and cycling of residential HVAC applications, maintaining accurate sensing to prevent the buildup of combustion gases. When replacing this draft proving switch, ensure the orifice and tubing are clear of moisture or debris to maintain system integrity and prevent nuisance tripping.
Key Benefits for HVAC Professionals
- OEM Precision: Guaranteed factory-set -0.90" WC trip point ensures exact compatibility with Nordyne-engineered airflow logic.
- Enhanced Safety: Primary safety interlock that prevents burner operation during restricted venting or inducer motor failure.
- Reliable Switching: Heavy-duty electrical contacts designed for SPST furnace safety control circuits.
- Direct Fit: Replaces Nordyne 632547 and 632547R without the need for mounting bracket modifications.
Common Questions
What are the symptoms of a failing pressure switch?
Common indicators include the inducer motor running without the igniter glowing, or a specific LED flash code on the integrated furnace control board signifying the switch failed to close or remained open during the startup sequence.
Can I use a universal pressure switch instead of the 632547R?
While universal switches exist, using a genuine OEM furnace part is recommended to ensure the -0.90" WC rating is exact. Incorrect set points can lead to unsafe combustion or frequent system lockouts.
Does this switch handle positive or negative pressure?
The Nordyne 632547R is designed for negative pressure sensing, monitoring the vacuum created by the inducer fan in the combustion chamber or collector box.
California Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and reproductive harm.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
