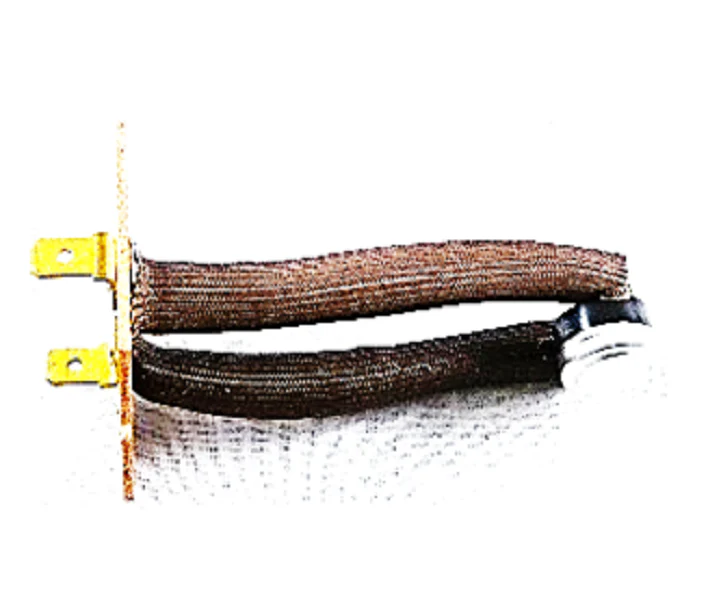

Nordyne 626509R Limit
The Nordyne 626509R is a precision-engineered L195-20 limit switch designed for critical thermal safety in Intertherm, Miller, and Nordyne furnace systems. This OEM replacement part is calibrated with fixed set points to open the circuit at 195°F and automatically reset when temperatures drop to 175°F. For field technicians, this ensures the air handler or furnace operates within the manufacturer’s specified safety parameters, preventing heat exchanger damage and residential fire hazards. The 3-inch main limit switch features a robust bimetal sensing element for increased reliability in high-cycle environments. As a direct 626509 cross-reference, it maintains system integrity by ensuring compatibility with existing N-series internal wiring and mounting brackets. Integrating this high-limit control into your maintenance routine reduces nuisance tripping and prevents furnace overheating, providing contractors with a reliable fix for broken safety circuits in forced-air systems.
Key Benefits- Precise Thermal Calibration: Designed as an L195-20 limit, it strictly enforces a 195-degree cutout to protect the heat exchanger.
- OEM Compatibility: Authentic Nordyne 626509R ensures correct form and fit for Intertherm and Miller furnaces.
- Automatic Reset: Resets at 175°F to allow the heating cycle to resume once the system has safely cooled.
- Safety Compliance: Crucial for preventing hazardous conditions in mobile home and residential HVAC units.
How do I know if my 626509R limit switch is tripped?
If the furnace blower runs continuously but the burner does not ignite, use a multimeter to check for continuity across the terminals. Replace the switch if it remains open at room temperature.
Can I use an L200 limit switch instead of this L195-20?
No. Using a limit switch with a higher temperature rating can bypass safety protocols and lead to equipment failure. Always use the specified 195-degree limit for this application.
What causes a Nordyne limit switch to fail frequently?
Frequent tripping is typically caused by restricted airflow, such as a clogged filter, closed registers, or a failing blower motor. Address these issues to prevent premature wear on the furnace safety switch.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
