Nordyne 624811R Module

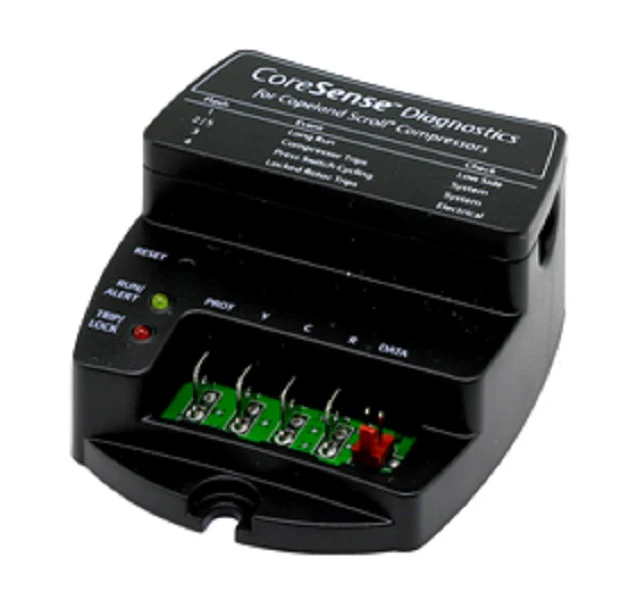

The Nordyne 624811R Comfort Alert Module is a critical diagnostic tool designed specifically for high-efficiency heat pump systems utilizing Copeland Scroll compressors. As a veteran-grade HVAC monitoring module, it functions as a localized sensor that analyzes the compressor’s performance in real time. By interpreting electrical signatures, the 624811R module identifies specific faults such as low pressure, high discharge temperatures, or electrical issues before they lead to catastrophic equipment failure. This OEM Nordyne part is engineered for seamless integration with single-phase systems, providing contractors with precise flash codes to streamline troubleshooting on-site.
For service technicians, installing this comfort alert diagnostic module means fewer callbacks and faster root-cause identification. The unit mounts directly in the electrical box and requires a constant 24VAC power supply to maintain its memory of active and historical fault codes. It effectively monitors for conditions like welded contactors, short cycling, and locked rotor states. By utilizing the Nordyne 624811R, you ensure the heat pump operates within its designed parameters, preserving system integrity and providing verifiable performance data during routine maintenance.
Key Benefits:- Advanced Diagnostics: Utilizes the compressor as a sensor to detect complex mechanical and electrical faults without external probes.
- Accurate Troubleshooting: Provides specific LED flash codes for conditions like low voltage, high pressure, and open thermal protection.
- System Longevity: Helps prevent compressor burnout by alerting technicians to short-cycling and reverse phase issues immediately.
- OEM Compatibility: Designed for direct application in Nordyne, Gibson, and Intertherm heat pump units with Copeland Scroll compressors.
What do the different LED flash codes mean?
The yellow ALERT LED communicates specific system faults through a series of timed flashes. For example, a Code 4 typically indicates a locked rotor, while a Code 1 indicates a high-pressure trip. Always reference the specific flash code chart provided on the equipment’s service panel or manual for precise interpretation.
Can this module shut down the system if a fault is detected?
The 624811R is primarily a monitoring and diagnostic device. While it communicates abnormal conditions, it is not a standalone safety bypass and does not directly break the contactor circuit unless integrated into a specific high-level control board circuit that supports active protection.
Does this module require external sensors to monitor pressure?
No, this module is self-contained. It analyzes the specific electrical characteristics and internal motor protection of the compressor to determine if the system is operating outside of its pressure and temperature thresholds.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
