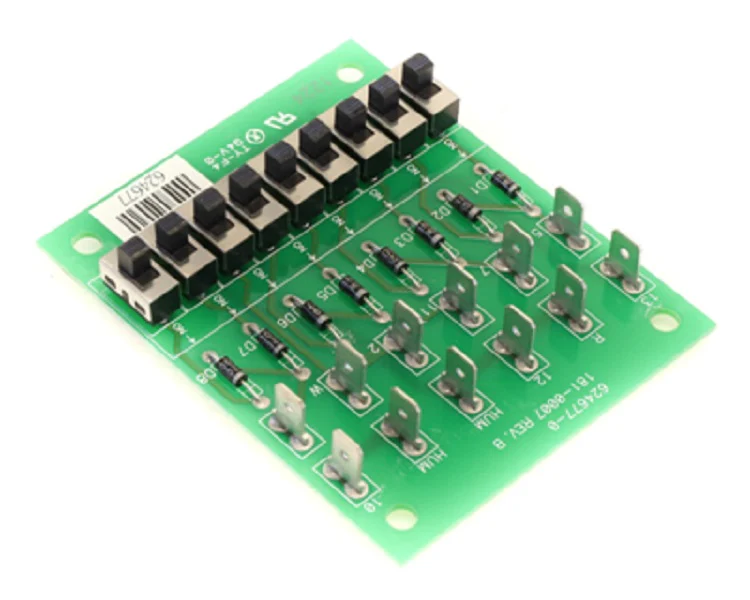

Nordyne 624677R ECM Board
The Nordyne 624677R ECM Board is a critical OEM replacement motor control designed for high-efficiency furnaces and air handlers. As a veteran technician knows, this board is the primary interface between the 24VAC thermostat call and the ECM blower motor logic. It replaces legacy part numbers 624677 and is engineered specifically for Nordyne, Intertherm, and Miller M4, M6, and M7 series units. This control board utilizes an onboard microprocessor to interpret variable speed airflow signals, eliminating the need for external run capacitors and ensuring precise CFM delivery across multiple heat and cool stages. The PCB is conformal-coated to resist corrosion in high-humidity environments, maintaining signal integrity at the 16-pin and 5-pin molex connectors. When diagnosing HVAC blower motor issues, this Nordyne control board provides essential self-diagnostics via integrated fault-code LEDs to differentiate between board failure and motor module faults.
Key Benefits- OEM Compatibility: Exact drop-in replacement for Nordyne 624677 and 624677R ensures no modifications are needed during installation.
- Enhanced Efficiency: Processes variable speed logic to optimize airflow and reduce electrical consumption compared to standard PSC motors.
- Durable Infrastructure: Features a moisture-resistant protective coating on the circuit board to prevent premature failure from condensation.
- Diagnostic Support: Onboard LED indicators allow for rapid troubleshooting of communication signals between the furnace and ECM motor.
- Robust Connectivity: Designed with keyed molex harness ports to prevent miswiring and ensure secure 24V signal transmission.
How do I verify if the 624677R board or the motor module is faulty?
Perform a "Go-No-Go" test by checking for 24VAC at the G and C terminals. If voltage is present but there is no DC signal output at the 16-pin harness, the ECM motor control board is likely the failure point.
Does this board require programming in the field?
This OEM Nordyne board is factory-configured for specific HVAC blower profiles, though technicians should always match the dip switch settings from the original board to maintain correct CFM and ramp-up timings.
What are the signs of a failing Nordyne ECM control board?
Common symptoms include the blower motor failing to start despite a call for fan, intermittent airflow speeds, or the LED status light remaining dark while 24V power is supplied to the board.
This item is not eligible for free shipping.
