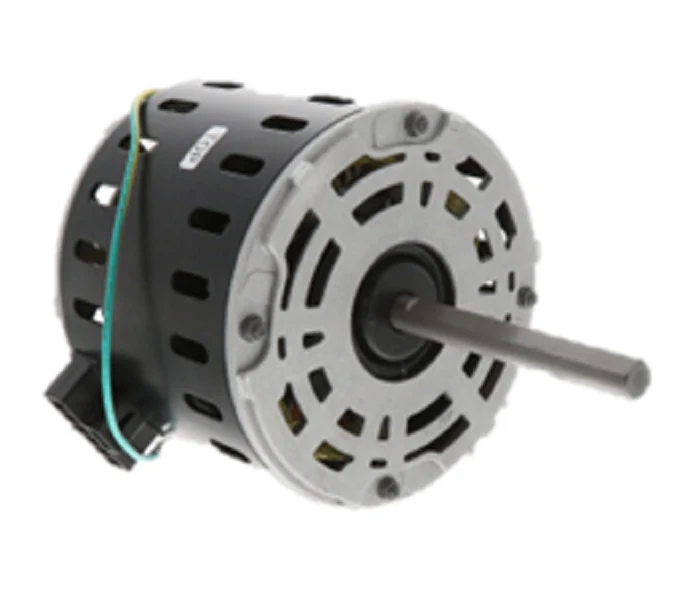

Nordyne 622260 Motor
For field technicians and contractors managing residential or light-commercial HVAC repairs, the Nordyne 622260 Motor serves as a critical direct-replacement component for maintaining system air balance. This heavy-duty 1/3 HP blower motor is engineered for a 208-230V power supply, operating at a rated speed of 1000 RPM to deliver consistent static pressure across the ductwork. Built with a Permanent Split Capacitor (PSC) design and featuring a standard 5-inch bolt-circle frame, this motor integrates seamlessly into several Nordyne-built air handler and furnace platforms including Intertherm, Miller, and Frigidaire brands. The multi-speed functionality allows for precise airflow adjustment, optimizing the performance of 2 to 5-ton condenser units and rooftop packages. Its Open Drip-Proof (ODP) enclosure and continuous-duty sleeve bearings ensure the unit withstands demanding duty cycles while maintaining low acoustic output for indoor environments.
Key Benefits for HVAC Professionals- Universal Compatibility: Engineered as a direct drop-in for OEM Nordyne part numbers 622260 and 622260R, reducing time on-site for part matching.
- Optimized Efficiency: The high-efficiency 230v motor configuration minimizes amperage draw, helping to stabilize system operating costs.
- Durable Construction: Features a rugged frame and 1/2 inch shaft with machined flat for secure blower wheel attachment and vibration resistance.
- Application Versatility: Suitable for a wide range of HVAC blower motor replacements in electric furnaces and air handler systems.
- Multi-Speed Control: Includes wiring for 3-speed operation, providing flexibility to match specific CFM requirements of the air distribution system.
What are the wiring lead colors for the Nordyne 622260 replacement?
Standard installations typically utilize a black (high), blue (medium), and red (low) lead configuration for speed selection, though technicians should always reference the schematic on the Nordyne motor housing to confirm capacitor and line voltage connections.
Is an external run capacitor required for this 1/3 HP motor?
Yes, this 1000 RPM blower motor requires an external run capacitor (typically 5 MFD/370V) for proper torque and rotation. Ensure the capacitor value matches the motor nameplate during installation to prevent overheating.
Can this motor replace a 1075 RPM rated unit?
The 622260 is specifically rated for 1000 RPM. While a 75 RPM difference is often within the tolerance for many residential furnace motors, it is recommended to verify the blower wheel curve to ensure the airflow remains within the manufacturer’s specifications for the heat exchanger or evaporator coil.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
