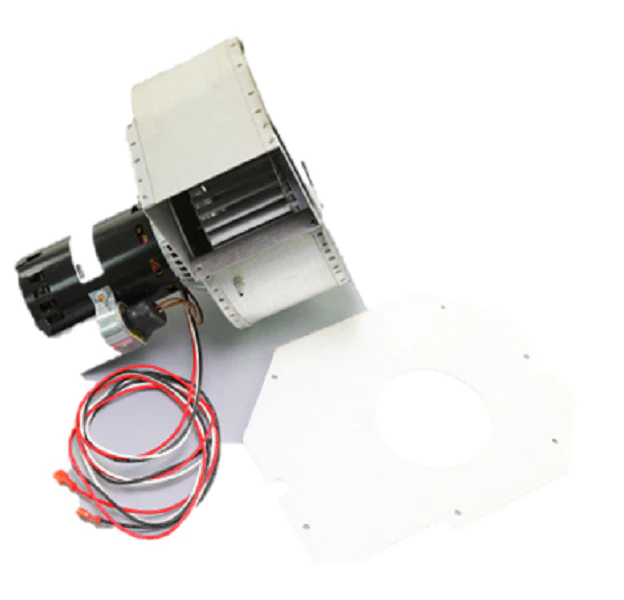

Nordyne 622120 Inducer Assembly
The Nordyne 622120 Inducer Assembly is a critical mechanical component designed for high-efficiency draft induction in gas-fired heating systems. As a veteran-grade OEM furnace replacement part, this draft inducer blower is engineered to create the necessary negative pressure required to close the furnace pressure switch and initiate the ignition sequence. By effectively purging the heat exchanger of residual combustion gases, this assembly ensures safe flue gas ventilation and maintains peak heat transfer efficiency. Constructed with heavy-duty materials to withstand high operating temperatures, the 622120 serves as a direct drop-in for several Nordyne furnace models, including those under the Intertherm and Miller brand names. When diagnosing a no-heat call where the motor is seized, humming, or drawing high amperage, replacing the entire inducer motor assembly is the standard professional solution to restore reliable system performance and prevent safety lockouts.
Key Benefits for the Technician- Direct OEM Compatibility: Engineered specifically for Nordyne equipment to ensure precise mounting and electrical connection.
- Enhanced Gas Venting: High-speed blower wheel design maximizes static pressure to ensure consistent pressure switch closure.
- Durable Construction: Built to endure the corrosive environment of flue gas condensate for long-term reliability in the field.
- System Safety: Restores proper draft, preventing the buildup of dangerous carbon monoxide and ensuring a clean burn.
How do I know if my inducer motor has failed?
If you hear a loud grinding or vibrating noise, or if the furnace fails to transition from the inducer start-up to the igniter phase, the motor may be defective. Check for 120V at the motor leads; if power is present but the wheel won't spin freely, the bearings are likely seized.
Does this assembly include the gasket?
Most OEM assemblies are provided as a complete unit. However, we recommend inspecting the housing seal during teardown. If the existing seal is compressed or brittle, use high-temp RTV silicone to ensure a gastight connection to the collector box.
Why is my pressure switch not closing after installing a new motor?
Verify that the vacuum port on the 622120 is clear of debris. Even with a new motor, a restricted flue pipe or a clogged condensate drain in high-efficiency models can prevent the assembly from reaching the required water column (WC) pressure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
