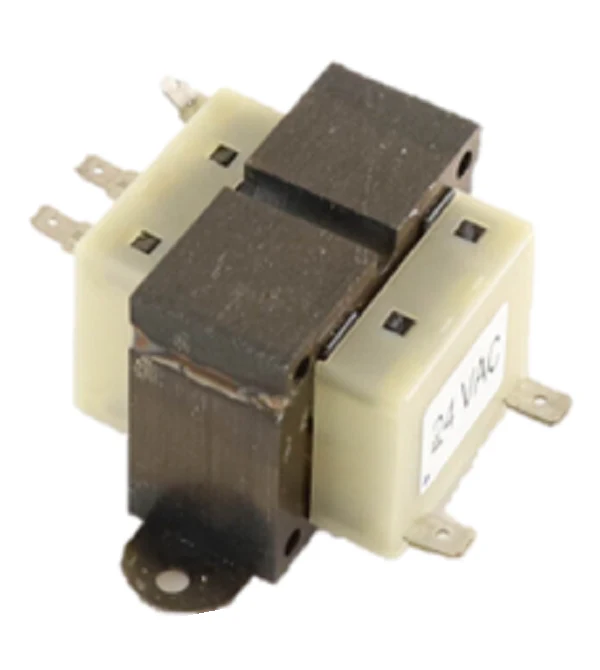

Nordyne 620859R Transformer
The Nordyne 620859R Transformer is a heavy-duty step-down transformer engineered specifically for Nordyne HVAC equipment, providing stable low-voltage power to essential control circuits. This OEM 240V transformer features a 208/240V primary input and a 24V secondary output, rated at 30VA capacity. As a critical component for system communication, it ensures that your thermostat, relays, and integrated furnace controls receive the precise voltage required for operation. Technicians often prefer this specific HVAC part replacement for its durable construction and 30VA 24V output, which maintains consistent amperage for the low-voltage side of air handlers and cooling systems. Whether you are troubleshooting a blank thermostat or a non-responsive control board, this Nordyne furnace transformer offers the reliability needed for professional service calls. Its compact footprint allows for seamless integration into existing mounting brackets, ensuring a standard fit that reduces time spend on field modifications during installation.
Key Benefits- Precise Voltage Conversion: Efficiently steps down high-voltage 208V or 240V line power to a steady 24V AC for control circuits.
- OEM Compatibility: Designed as a direct drop-in for Nordyne HVAC systems, ensuring terminal alignment and mounting accuracy.
- Sufficient Load Handling: The 30VA rating provides ample power for standard thermostats, contactors, and protection relays.
- Rugged Build Quality: Constructed with high-grade windings to resist thermal degradation and electrical fluctuations typical in air handlers.
What are the symptoms of a failed Nordyne 620859R?
Common indicators include a completely blank thermostat display, a blown low-voltage fuse (typically 3A or 5A), or a lack of 24V output when testing secondary terminals with a multimeter while line voltage is present.
Can I use this transformer to replace a 40VA rated model?
It is recommended to match or exceed the VA rating of the original part. While this 30VA unit is standard for many Nordyne units, verify that your total control load (including any added accessories like zoning panels) does not exceed 1.25 amps at 24V.
How do I wire the primary side for 208V vs 240V?
Always refer to the wiring diagram on the unit or the transformer label. Ensure unused primary leads are safely capped with wire nuts to prevent internal shunting or short circuits against the cabinet.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
