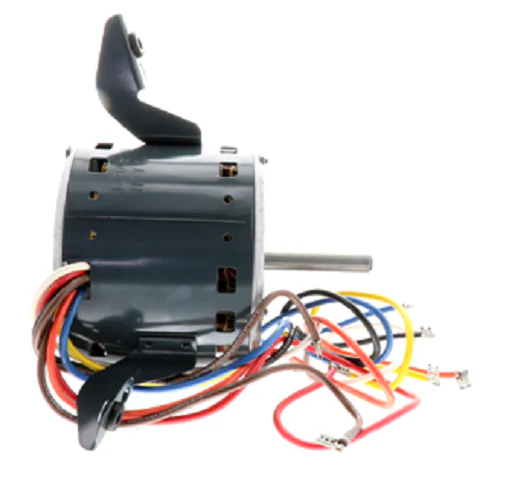

Nordyne 620699 Motor
The Nordyne 620699 is a heavy-duty, direct drive blower motor engineered for specific furnace and air handler applications across Nordyne, Intertherm, and Miller product lines. This 1/3 HP furnace motor operates at a fixed 1100 RPM on a 115V single-phase circuit, drawing approximately 6.0 - 6.2 Amps at full load. Built with a 5.6-inch diameter (48 frame) housing, this motor features a permanent split capacitor (PSC) design, requiring a 5 MFD/370V capacitor (sold separately) for optimal torque and efficiency. The shaft typically measures 1/2 inch by 4 inches, allowing for precise alignment with standard blower wheels. Designed with all-angle sleeve bearings and Class B insulation, this split-phase motor is rated for continuous air-over duty, ensuring reliable thermal dissipation in high-static environments. For contractors, this is an exact drop-in replacement, eliminating the need for mounting bracket modifications in compatible intertherm furnace replacement motor service calls.
Key Benefits
- Direct OEM Fit: Designed as a specific Nordyne 620699 motor replacement to ensure physical compatibility with internal blower assemblies.
- Sleeve Bearing System: Features high-grade lubricated sleeve bearings for quiet operation and vertical or horizontal mounting flexibility.
- Thermal Protection: Includes internal automatic reset thermal overload protection to prevent winding failure during high-amperage events.
- NEMA 48 Frame: Utilizes the industry-standard 5.6-inch diameter for universal compatibility with torsion flex or belly band mounts.
Common Questions
What capacitor does the Nordyne 620699 require?
This motor requires a 5 MFD 370V run capacitor. Always verify the rating on the motor nameplate during installation to prevent overheating.
Can this motor replace a multi-speed blower motor?
The 620699 is a single-speed (1SPD) motor. It is intended for systems where the airflow rate is fixed or regulated by the control board at a single tap.
Is this compatible with Intertherm E2 series furnaces?
Yes, this 1/3 HP 1100 RPM motor is a common specification for several E2 series electric furnaces and standard gas-fired units using the 620699 part number.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
