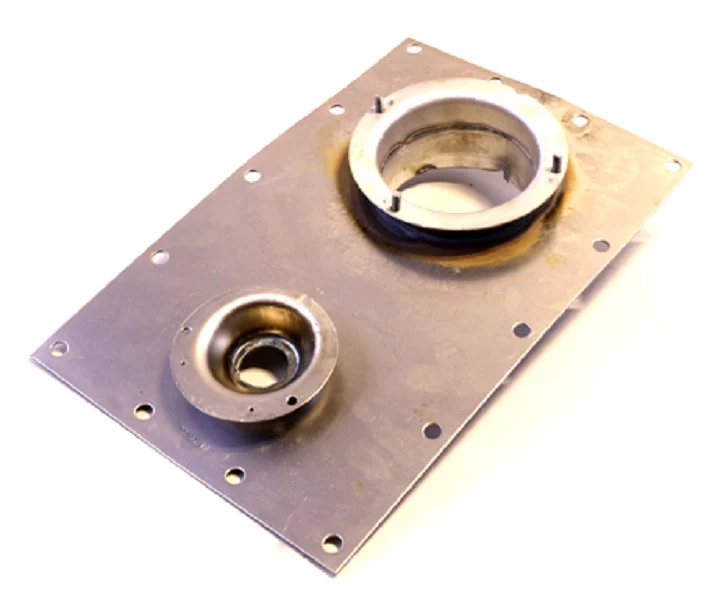

Nordyne 356750R Burner Plate Weldment
The Nordyne 356750R Burner Plate Weldment is a critical OEM replacement component designed to maintain precise combustion alignment within Nordyne, Miller, and Intertherm CMF series furnaces. This heavy-duty furnace burner plate serves as the primary mounting platform for burner tubes and pilot assemblies, ensuring that the flame geometry remains stable and centered within the heat exchanger. Engineered for high-temperature resilience, this weldment assembly is frequently used to resolve issues stemming from warped or heat-damaged plates that lead to inconsistent ignition or localized overheating. As a veteran-grade HVAC furnace repair part, the 356750R is compatible with a wide range of downflow units, including CMF80 and CMF100 models, as well as older MOC and MGC configurations. It is important for contractors to note that this specific plate is not compatible with CMF2 models. Integrating this factory-spec 356750R weldment restores the critical seal between the burner box and the combustion chamber, preventing dangerous internal gas leakage and optimizing fuel efficiency across gas-fired mobile home heating systems.
Key Benefits:
- Factory-Correct Alignment: Restores precise burner tube and pilot positioning to ensure consistent ignition and stable flame patterns.
- Heavy-Gauge Construction: Built with high-grade stamped steel to resist warping and thermal stress under continuous heating cycles.
- Direct OEM Fit: Eliminates labor intensive field modifications by matching original mounting footprints for CMF series furnaces.
- Combustion Integrity: Provides a rigid sealing surface to prevent combustion byproduct leakage into the furnace cabinet.
Common Questions:
Does this plate include the mounting gaskets?
Standard 356750R kits typically include the weldment plate only. It is recommended to source new high-temperature gaskets separately during installation to ensure a gas-tight seal.
Is the 356750R compatible with Miller CMF2 furnaces?
No, this weldment is specifically designed for standard CMF, CMF80, and CMF100 models. CMF2 units utilize a different burner configuration and require a separate part number.
What are the signs that a burner plate weldment needs replacement?
Technicians should look for visible metal fatigue, heavy scale buildup, or warping that causes the burner tubes to tilt. If the flame is "licking" the sides of the entry port, the plate alignment has likely failed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
