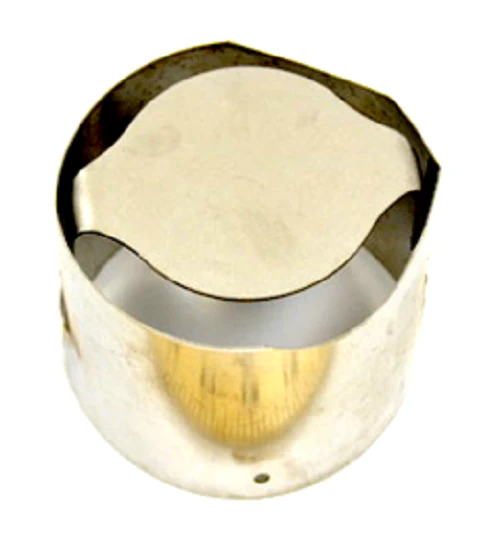

Nordyne 248750R Air Cone Assembly
The Nordyne 248750R Air Cone Assembly is a critical combustion component engineered for precise airflow management in specific gas furnace burner configurations. As the official direct replacement for part 248750, this 248750R assembly is essential for technicians servicing Miller, Intertherm, and Nordyne CMF series units. This component is specifically designed for use in CMF80 and CMF100 direct ignition gas burners, ensuring the proper flame pattern and combustion efficiency required for downflow furnace applications. Featuring a 4-1/8 inch diameter and a 2-5/8 inch length, this OEM Air Cone Assembly provides the exact physical tolerances needed to maintain optimal heat transfer and prevent turbulence within the combustion chamber. For contractors, utilizing this genuine Nordyne replacement part is the most reliable way to restore system performance to factory specifications while ensuring long-term operational stability in demanding residential or mobile home heating environments.
Key Benefits- Direct OEM Compatibility: Engineered specifically as a drop-in replacement for Nordyne 248750 and 104413001, eliminating the need for field modifications.
- Optimized Combustion: Precisely directs airflow through the burner to maintain a stable flame pattern and maximize thermal efficiency.
- High-Durability Construction: Fabricated from high-quality metal to withstand the continuous thermal cycles typical of CMF series gas furnaces.
- Versatile Application: Validated for use across multiple brands, including Intertherm, Miller, and Maytag HVAC equipment.
Which furnace models use the Nordyne 248750R?
This air cone is primarily utilized in Nordyne CMF80 and CMF100 downflow gas furnaces equipped with direct ignition systems.
Is the 248750R compatible with the older 248750 model?
Yes, the 248750R is the direct successor and replaces the original 248750 and 104413001 part numbers with updated manufacturing standards.
What are the physical dimensions for fitment verification?
The assembly measures 4-1/8 inches in diameter and 2-5/8 inches in length, designed to fit standard PGB H series burner housings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $85.07
-65%$85.07
$29.77Nordyne 248750R Air Cone Assembly
The Nordyne 248750R Air Cone Assembly is a critical combustion component engineered for precise airflow management in specific gas furnace burner configurations. As the official direct replacement for part 248750, this 248750R assembly is essential for technicians servicing Miller, Intertherm, and Nordyne CMF series units. This component is specifically designed for use in CMF80 and CMF100 direct ignition gas burners, ensuring the proper flame pattern and combustion efficiency required for downflow furnace applications. Featuring a 4-1/8 inch diameter and a 2-5/8 inch length, this OEM Air Cone Assembly provides the exact physical tolerances needed to maintain optimal heat transfer and prevent turbulence within the combustion chamber. For contractors, utilizing this genuine Nordyne replacement part is the most reliable way to restore system performance to factory specifications while ensuring long-term operational stability in demanding residential or mobile home heating environments.
Key Benefits- Direct OEM Compatibility: Engineered specifically as a drop-in replacement for Nordyne 248750 and 104413001, eliminating the need for field modifications.
- Optimized Combustion: Precisely directs airflow through the burner to maintain a stable flame pattern and maximize thermal efficiency.
- High-Durability Construction: Fabricated from high-quality metal to withstand the continuous thermal cycles typical of CMF series gas furnaces.
- Versatile Application: Validated for use across multiple brands, including Intertherm, Miller, and Maytag HVAC equipment.
Which furnace models use the Nordyne 248750R?
This air cone is primarily utilized in Nordyne CMF80 and CMF100 downflow gas furnaces equipped with direct ignition systems.
Is the 248750R compatible with the older 248750 model?
Yes, the 248750R is the direct successor and replaces the original 248750 and 104413001 part numbers with updated manufacturing standards.
What are the physical dimensions for fitment verification?
The assembly measures 4-1/8 inches in diameter and 2-5/8 inches in length, designed to fit standard PGB H series burner housings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
