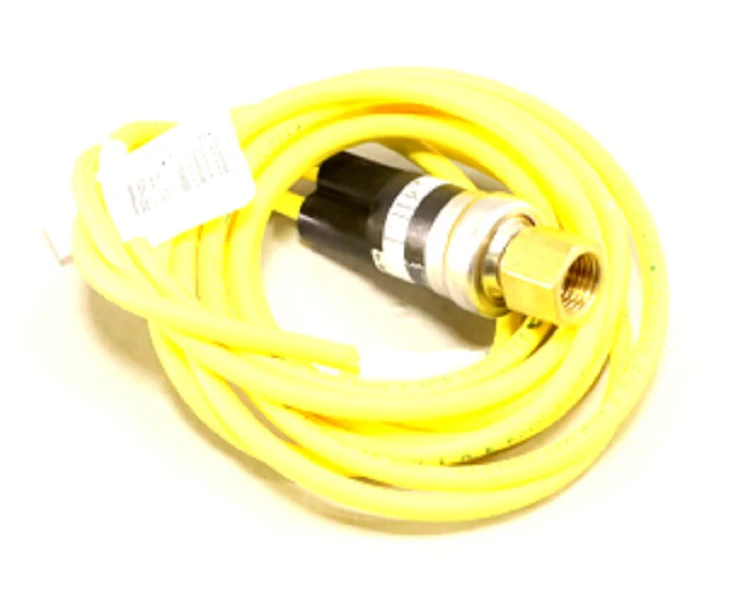

Nordyne 1023984R Pressure Switch
The Nordyne 1023984R Pressure Switch is a critical safety and operational component designed specifically for R-410A and R-22 air conditioning and heat pump systems. Engineered as a 75/55# Low Pressure Switch, this genuine OEM replacement part monitors refrigerant levels to prevent compressor slugs and burnout. If the system pressure drops below the 55 PSI cut-out threshold, the switch interrupts the control circuit to protect the scroll or reciprocating compressor from operating in a vacuum or low-flow state. Once pressure rises back to the 75 PSI cut-in point, the auto-reset mechanism restores operation, ensuring the system maintains high-efficiency performance without a manual hard reset.
This HVAC low pressure cutout features a rugged housing and 1/4" quick-connect terminals for a direct-fit installation on Nordyne, Intertherm, Miller, and Frigidaire equipment. Replacing an aging or faulty 1023984R is standard practice for technicians troubleshooting intermittent cooling failures or low-pressure lockout codes. By utilizing a high-precision 75/55# pressure range, this switch provides the exact sensitivity required to maintain factory specifications and optimize the service life of the outdoor unit.
Key Benefits
- OEM Precision Compatibility: Ensures seamless integration with Nordyne-branded air conditioners and heat pumps, replacing legacy part number 632393R.
- Compressor Protection: Proactively shuts down the system if a leak or restriction occurs, preventing refrigerant starvation and overheating.
- Automated Operation: The 75 PSI cut-in and 55 PSI cut-out logic provides reliable low-pressure protection with an automatic reset feature.
- Simplified Field Replacement: Standard faston-style terminals allow for rapid wiring, reducing labor time during maintenance calls.
Common Questions
What are the symptoms of a failing 1023984R switch?
A faulty low pressure switch often causes the compressor to "short cycle" or prevents it from engaging entirely while the indoor fan continues to run. You may also see a diagnostic LED flash code on the control board indicating a low-pressure trip.
Can I use this switch for both R-22 and R-410A systems?
Yes, as long as the system’s operating parameters align with the 75/55# pressure range designated by the manufacturer, this switch is appropriate for monitoring the low-side refrigerant line.
Does this switch require a manual reset?
No, the Nordyne 1023984R is an automatic reset switch. It will close the circuit automatically once the suction line pressure reaches the 75 PSI reset point.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
