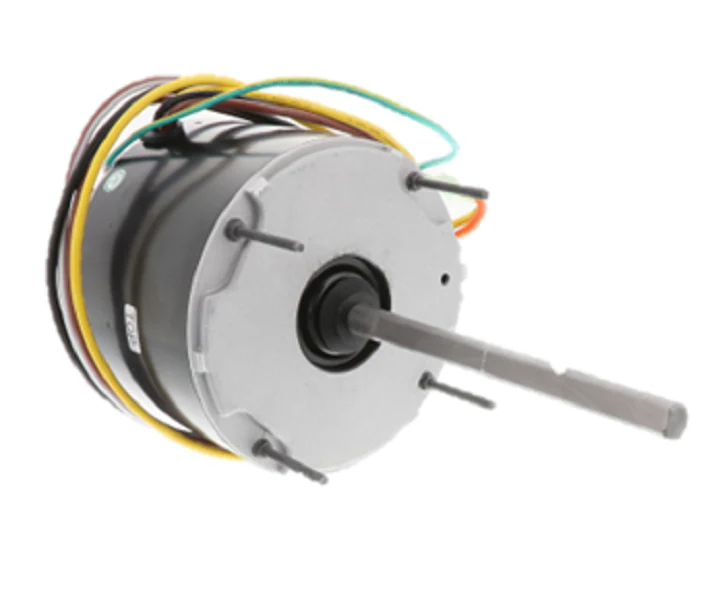

Nordyne 01-0167 Motor
The Nordyne 01-0167 Motor is a high-efficiency condenser fan motor engineered for specific HVAC applications requiring a 1/3 HP output. Operating at 208/230V and a rated speed of 825 RPM, this motor provides the low-speed, high-torque performance necessary for optimal heat dissipation in residential and light commercial outdoor units. It features a totally enclosed air over (TEAO) design to protect internal components from environmental debris, ensuring reliable operation under high thermal loads. This motor is a direct OEM replacement part, frequently utilized in Miller and Intertherm equipment. When replacing this unit, technicians should verify the capacitor requirements and existing frame size to ensure a precise mechanical fit. The permanently lubricated ball bearings minimize friction and extend the service life of the assembly, making it a rugged solution for contractors looking for a drop-in Nordyne replacement motor that maintains original factory specifications.
- Direct OEM Fit: Engineered specifically for Nordyne, Intertherm, and Miller condensing units to ensure electrical and mounting compatibility.
- Optimized Airflow: The 825 RPM rating is critical for maintaining correct head pressure levels without excessive noise.
- Weather Resistance: Built with high-grade insulation and a protective housing to withstand outdoor environmental exposure.
- Electrical Efficiency: Rated for 208-230V operation, providing consistent torque and reduced energy consumption during peak summer cycles.
Common Questions
What capacitor is required for the Nordyne 01-0167?
This motor typically requires a 5 MFD / 370V run capacitor, though you should always verify the label on the physical motor as manufacturer specifications can update.
Can I use a 1075 RPM motor to replace this 825 RPM model?
No. Increasing the RPM will alter the static pressure and can lead to motor failure or poor refrigerant cooling. It is essential to match the 825 RPM specification exactly.
Is this motor reversible?
Most 01-0167 motors are set for a specific rotation. Check the lead wire diagram on the housing to confirm rotation direction before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Nordyne 01-0167 Motor
The Nordyne 01-0167 Motor is a high-efficiency condenser fan motor engineered for specific HVAC applications requiring a 1/3 HP output. Operating at 208/230V and a rated speed of 825 RPM, this motor provides the low-speed, high-torque performance necessary for optimal heat dissipation in residential and light commercial outdoor units. It features a totally enclosed air over (TEAO) design to protect internal components from environmental debris, ensuring reliable operation under high thermal loads. This motor is a direct OEM replacement part, frequently utilized in Miller and Intertherm equipment. When replacing this unit, technicians should verify the capacitor requirements and existing frame size to ensure a precise mechanical fit. The permanently lubricated ball bearings minimize friction and extend the service life of the assembly, making it a rugged solution for contractors looking for a drop-in Nordyne replacement motor that maintains original factory specifications.
- Direct OEM Fit: Engineered specifically for Nordyne, Intertherm, and Miller condensing units to ensure electrical and mounting compatibility.
- Optimized Airflow: The 825 RPM rating is critical for maintaining correct head pressure levels without excessive noise.
- Weather Resistance: Built with high-grade insulation and a protective housing to withstand outdoor environmental exposure.
- Electrical Efficiency: Rated for 208-230V operation, providing consistent torque and reduced energy consumption during peak summer cycles.
Common Questions
What capacitor is required for the Nordyne 01-0167?
This motor typically requires a 5 MFD / 370V run capacitor, though you should always verify the label on the physical motor as manufacturer specifications can update.
Can I use a 1075 RPM motor to replace this 825 RPM model?
No. Increasing the RPM will alter the static pressure and can lead to motor failure or poor refrigerant cooling. It is essential to match the 825 RPM specification exactly.
Is this motor reversible?
Most 01-0167 motors are set for a specific rotation. Check the lead wire diagram on the housing to confirm rotation direction before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
