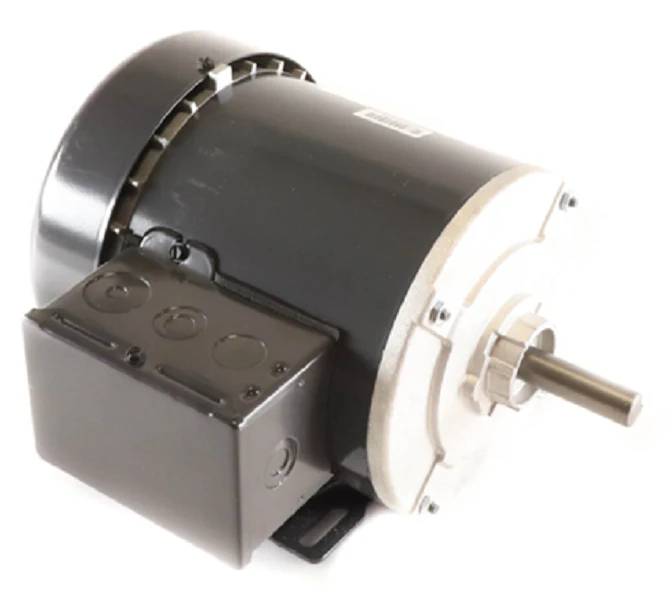

Nidec-US Motors T14S2A Motor
The Nidec-US Motors T14S2A is a commercial-grade, 1/4 HP three-phase motor engineered for rigorous HVACR applications. Operating at 1725 RPM, this 48Y frame motor supports 208-230/460V triple-voltage configurations, making it a versatile choice for condenser fans and air handling units. Its totally enclosed air over (TEAO) design ensures internal components are protected from environmental contaminants while utilizing the application’s airflow for thermal management. Built with ball bearings for high-temperature durability and reduced friction, the T14S2A provides stable performance in continuous duty cycles. This general-purpose motor features a standard 1/2-inch shaft diameter and is designed for direct-drive systems where reliable torque and high efficiency are required. For contractors, the T14S2A simplifies inventory by replacing multiple HVAC motor models across different voltage requirements, ensuring a precise mechanical fit and simplified field wiring.
Key Benefits- Triple-Voltage Versatility: Supports 208-230/460V, allowing for broad compatibility across commercial power supplies.
- TEAO Enclosure: Engineered for airflow-cooled environments, protecting the motor from dust and moisture ingress.
- Precision Reliability: Equipped with permanently lubricated ball bearings to handle axial and radial loads in vertical or horizontal orientations.
- Industrial Duty: Capable of continuous operation in high-demand refrigeration and ventilation systems without thermal degradation.
Is the US Motors T14S2A suitable for variable frequency drive (VFD) applications?
While typically used in constant-speed applications, this three-phase motor is compatible with standard inverter setups, provided the VFD parameters are tuned to the 48Y frame thermal limits.
What is the frame size and shaft dimension for this 1/4 HP motor?
The T14S2A uses a 48Y frame and typically features a 1/2-inch diameter by 2.5-inch long shaft, common in commercial fan blade assemblies.
Can this motor be mounted in any orientation?
Yes, the dual ball bearing system allows for all-angle mounting, making it suitable for both horizontal blower housings and vertical condenser fan setups.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
