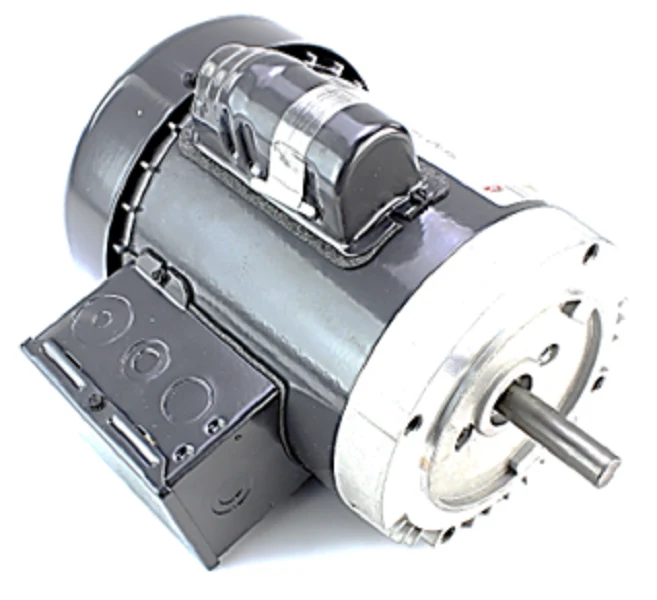

Nidec-US Motors T12C2JCR Motor
The Nidec-US Motors T12C2JCR is a professional-grade 1/2 HP general purpose motor engineered for industrial and commercial environments requiring a reliable 56C NEMA frame size. Running at a synchronized 1725 RPM, this single phase motor operates on a versatile 115/208-230Vac high-torque capacitor start configuration. Built with a Totally Enclosed Fan Cooled (TEFC) enclosure, it prevents the ingress of dust and moisture, making it ideal for pump, fan, and blower applications where exposure to contaminants is likely. The C-Face mount and ball bearing construction ensure stability under axial and radial loads, while the reversible rotation capability adds field flexibility for direct-drive or belt-drive setups. With a robust 9.0/4.3-4.5 Amps rating, this 1-speed motor provides the thermal efficiency and mechanical durability required for continuous duty cycles in demanding HVACR and industrial mechanical systems.
- Universal 56C Frame: Features a standard C-Face flange for precise alignment with gear reducers and pumps.
- Superior Protection: TEFC enclosure protects internal windings from airborne debris and moisture.
- Voltage Flexibility: Dual voltage 115/208-230V capability allows for integration into diverse electrical infrastructures.
- Reversible Leads: Simplifies installation by allowing the technician to switch rotation direction in the field.
- High-Torque Performance: Optimized ball bearing design reduces friction and extends the service life of the drive end.
Common Questions
Can this motor be mounted vertically?
Yes, the Nidec T12C2JCR features ball bearings and a C-Face mount, which typically allows for versatile mounting orientations, provided the shaft is properly coupled to the load.
Is this motor suitable for outdoor use?
The Totally Enclosed Fan Cooled (TEFC) design provides significant protection against the elements compared to open dripproof motors, though it should be shielded from direct heavy saturation.
How do I change the rotation on this unit?
Rotation is reversable by following the wiring diagram located on the motor nameplate, which involves swapping specific internal lead connections.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
