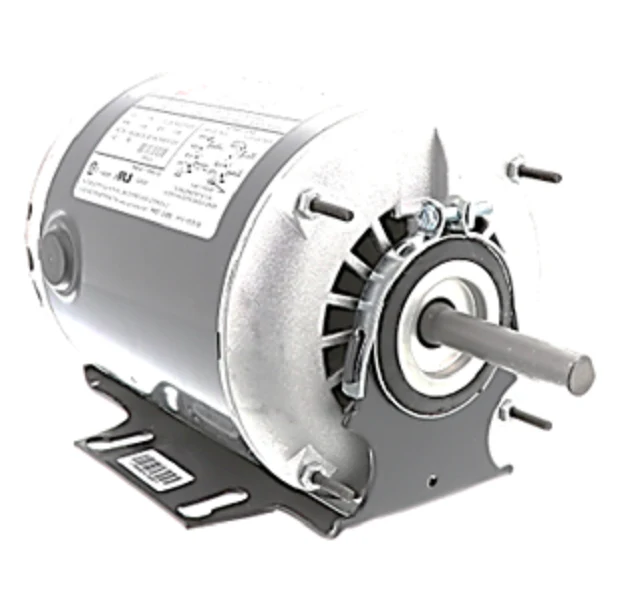

Nidec-US Motors PD6002 Motor
The Nidec US Motors PD6002 is a professional-grade 1/4 HP belt drive motor designed for reliable performance in commercial HVAC and residential air handling applications. Operating at 1725 RPM, this split phase motor supports dual-voltage configurations of 115/208-230Vac, pulling 5.2/2.5-2.6 Amps respectively. Built on a 48Z NEMA frame size, it features a resilient mount (cradle base) to significantly minimize vibration and structural noise during operation. The open dripproof (ODP) enclosure is engineered for environments with adequate ventilation, while the ball bearing system ensures longevity under high-tension belt loads. As a reversible rotation motor, it provides the versatility needed for various blower and fan orientations. This 1 speed HVAC blower motor serves as a high-performance drop-in replacement for maintenance contractors requiring industrial durability and precise fitment in belt-driven systems.
- Dual Voltage Versatility: Seamlessly integrates into 115V or 208-230V systems for broad job-site compatibility.
- Vibration Dampening: The resilient base mount reduces harmonic transfer, extending the life of the blower assembly.
- Industrial Build: Equipped with ball bearings to handle the radial loads associated with high-tension belt drives.
- Flexible Installation: Simple lead reversal allows for both clockwise and counter-clockwise rotation adjustments in the field.
- Standardized Fit: The 48Z frame ensures exact alignment with existing 48-frame brackets and mounting footprints.
Common Questions
What is the difference between a 48 and 48Z frame motor?
While a standard 48 frame typically has a 1/2-inch shaft, the "Z" suffix in the 48Z frame usually indicates a specific shaft modification, often a longer or larger diameter shaft, to accommodate specific belt drive pulleys. Always verify your pulley bore size before installation.
Can this motor be used in damp or enclosed environments?
This is an Open Dripproof (ODP) motor designed for dry, well-ventilated areas where air can flow through the windings. It should not be used in sealed cabinets or outdoor areas exposed to direct driving rain without additional protection.
How do I change the rotation on the PD6002?
Rotation is field-reversible. By swapping the specified leads according to the connection diagram on the motor nameplate, you can configure the unit for clockwise or counter-clockwise operation to match the blower's requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
