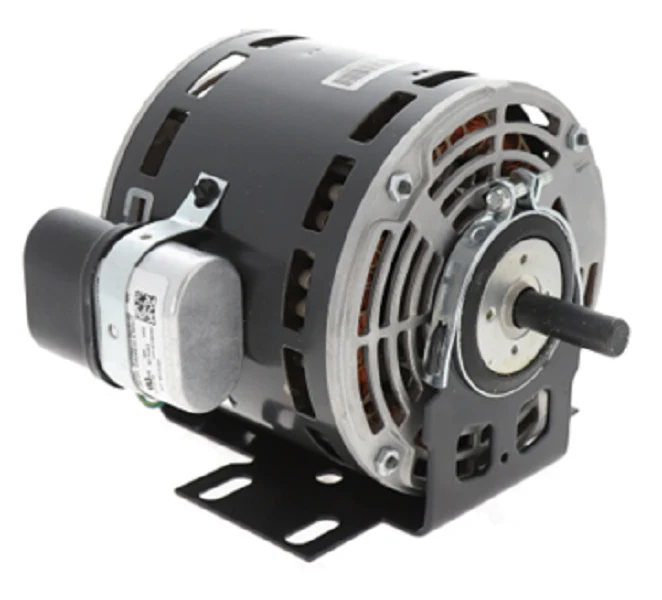

Nidec-US Motors P9584 Motor
The Nidec-US Motors P9584 is a professional-grade 1/4 HP condenser fan motor designed for direct-drive applications in residential and commercial HVAC units. Operating at 1075 RPM on a 115V single-phase circuit, this PSC motor features a standard 48-frame diameter and is engineered for reliable heat dissipation in demanding outdoor environments. For technicians handling OEM motor replacements, the P9584 provides universal mounting flexibility with its extended thru-bolts and rheostat-controllable speed capabilities. The Permanent Split Capacitor design ensures high efficiency while maintaining a low amp draw, making it a critical component for restoring system SCFM performance. Whether you are performing a seasonal tune-up or an emergency repair, this 115V fan motor offers the thermal protection and ball-bearing construction required for vertical shaft-up or shaft-down installations.
- Universal Mounting: Features a 48-frame chassis with standard mounting patterns for easy installation in various condenser housings.
- Variable Speed Compatibility: Optimized for use with speed controllers to match specific airflow requirements.
- High Thermal Limits: Equipped with automatic reset thermal overload protection to prevent winding failure during high-ambient operation.
- Quiet Operation: Precision-balanced rotor and advanced bearing system minimize vibrational noise in residential zones.
Common Questions
Is this motor multi-voltage?
No, the P9584 is specifically rated for 115V operation. Connecting it to 208-230V will result in immediate winding failure.
Does this include the capacitor?
Typically, PSC motors require a specific MFD-rated run capacitor (sold separately). Check the nameplate for the exact Microfarad requirement to ensure proper torque.
Can this be mounted in any orientation?
Yes, this motor is designed with all-angle thrust bearings, allowing for shaft-up, shaft-down, or horizontal mounting configurations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
