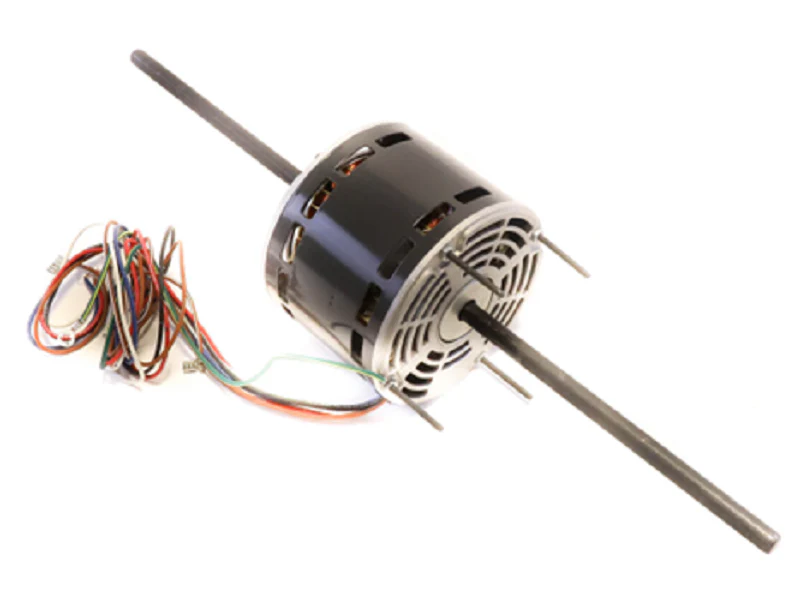

Nidec-US Motors NA1024 Motor
The Nidec-US Motors NA1024 Motor is a rugged 1/4 HP replacement motor engineered for commercial and residential air handling units. Operating on 208-230V single-phase power, this Permanent Split Capacitor (PSC) motor delivers a base speed of 1625 RPM across 3 speeds, allowing for precise airflow adjustment in various HVACR applications. Built with a 48Y frame and a 5.6-inch diameter, the NA1024 features a double shaft design and Open Drip-Proof (ODP) air-over enclosure to ensure efficient heat dissipation during continuous duty. The unit is equipped with automatic reset thermal overload protection and Class B insulation, rated for a 40°C ambient temperature. Its all-angle thrust system and self-aligning bearings facilitate mounting in any orientation, while the CCW lead end rotation meets standard fan and blower requirements. This HVAC blower motor is a direct solution for contractors requiring high-performance direct drive motors that maintain system pressure and thermal flow without efficiency loss.
Key Benefits:- Multi-Speed Flexibility: Features 3-speed taps to optimize performance for furnace blowers and air handlers.
- Robust Protection: Integrated automatic thermal overload prevents winding failure during restricted airflow conditions.
- Universal Mounting: The 48Y frame and double shaft configuration with hub rings adapt easily to diverse OEM blower housings.
- High-Efficiency Operation: PSC motor design reduces internal friction and heat, lowering overall operational expenses for the end-user.
- What capacitor is required for the NA1024? This motor typically requires a 5 MFD / 370V run capacitor (sold separately) for proper startup and torque.
- Is this motor suitable for outdoor condenser units? No, the Open Drip-Proof (ODP) air-over rating is specifically designed for indoor fan and blower applications where the motor is protected from direct weather exposure.
- Can it be mounted at any angle? Yes, the all-angle thrust system and self-aligning bearings permit vertical or horizontal installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
