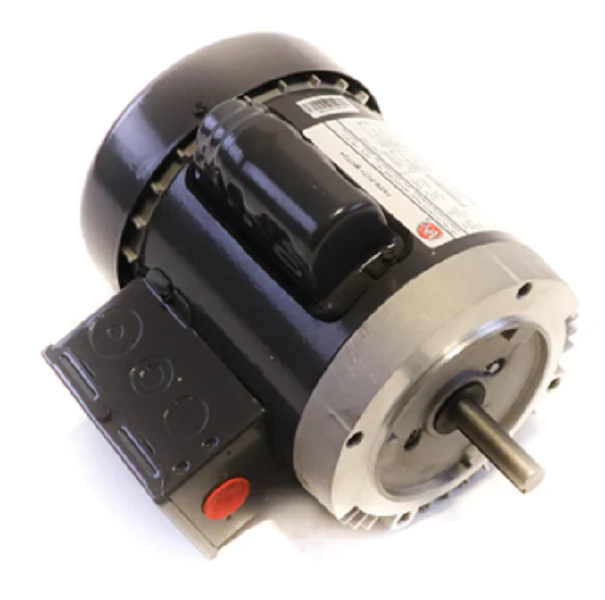

Nidec-US Motors FD13CM2PCR Motor
The Nidec-US Motors FD13CM2PCR is a professional-grade 1/3 HP condenser fan motor engineered for high-static HVAC applications. Operating at 1725 RPM with a dual-voltage 115/230V configuration, this PSC (Permanent Split Capacitor) motor features a totally enclosed air over (TEAO) enclosure, making it essential for external condenser units where internal components must be shielded from moisture and debris. Technicians will find the 48Y frame and reversible rotation (CW/CCW) critical for field flexibility and OEM motor replacement. With a 1.0 service factor and Class B insulation, the FD13CM2PCR motor is built for continuous duty performance in demanding thermal environments. This direct drive motor utilizes ball bearings to ensure longevity and efficiency under radial loads, providing a reliable drop-in solution for contractors focused on maximizing system uptime and airflow precision.
Key Benefits
- Dual Voltage Versatility: Seamlessly switch between 115V and 230V systems to accommodate varied job site requirements.
- TEAO Enclosure: Protects internal windings from environmental contaminants in outdoor condensing units.
- Reversible Rotation: Simplifies inventory by allowing on-site adjustment for clockwise or counter-clockwise requirements.
- Standard 48 Frame: Ensures a compatible fit with most residential and light commercial mounting brackets.
- Thermal Overload Protection: Automatic reset feature prevents winding failure during extreme temperature spikes.
Common Questions
What capacitor is required for the FD13CM2PCR?
This motor typically requires a 5 MFD / 370V run capacitor (verify specific rating on the motor nameplate during installation).
Can this motor be mounted in any orientation?
Yes, the ball bearing system allows for all-angle mounting, including shaft-up or shaft-down configurations.
Is the rotation easy to change in the field?
Yes, the rotation is reversible by swapping the lead connections according to the provided wiring diagram.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
