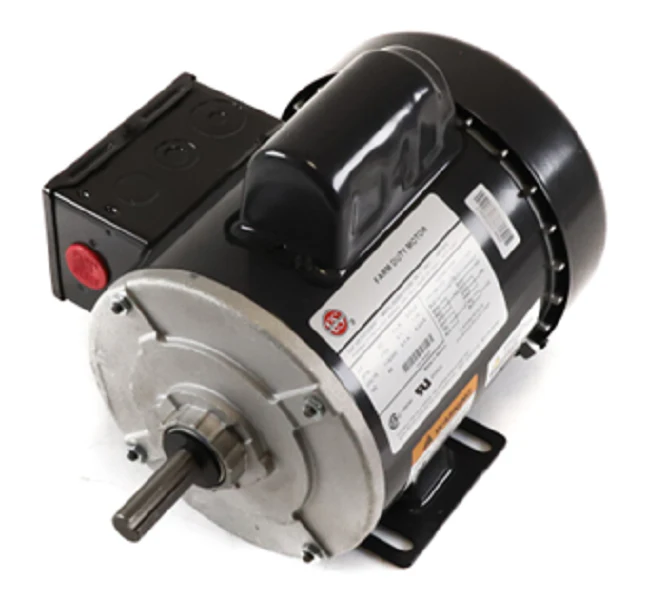

Nidec-US Motors FD12CM2P Motor
The Nidec-US Motors FD12CM2P is a heavy-duty 1/2 HP farm duty motor designed for high-torque applications in demanding agricultural and HVACR environments. Engineered with a totally enclosed fan-cooled (TEFC) enclosure, this motor features specialized ball bearings and Class B insulation to withstand the dust, debris, and temperature fluctuations common in barn, silo, and greenhouse operations. Operating at a synchronous speed of 1725 RPM, it utilizes a capacitor start design to provide the reliable breakaway torque required for belt-driven fans, augers, and manure pumps. This dual voltage motor supports both 115/230V configurations, offering flexibility for field installations on standard and high-voltage circuits. The NEMA 56 frame is constructed with a rigid base mount and a 5/8" diameter shaft, ensuring physical compatibility with a wide range of industrial equipment. Integrated manual overload protection acts as a critical safeguard against thermal damage during stall conditions, while the 1.15 service factor allows for occasional operation beyond the rated load without compromising the continuous duty performance.
Key Benefits- TEFC Enclosure: Prevents environmental contaminants from entering the motor, crucial for long-term reliability in agricultural settings.
- High Starting Torque: The capacitor-start design ensures the FD12CM2P can initiate heavy loads under pressure.
- Dual Voltage Capability: Easily switch between 115V and 230V systems to match existing site power.
- Manual Overload Protection: Provides a manual reset safety mechanism to protect the 1/2HP motor from over-amping or rotor lock.
- Reversible Rotation: Electrically reversible design allows for clockwise or counter-clockwise operation to suit specific fan or pump needs.
Is the FD12CM2P compatible with VFDs?
This specific single-phase AC motor is not typically rated for variable frequency drive use; it is designed for constant speed, 60Hz 1725 RPM applications.
Can I use this motor for vertical mounting?
The rigid base mount is engineered for horizontal placement. For vertical shafts, ensure the application does not exceed the axial load limits of the ball bearings.
How do I change the rotation of the motor?
Rotation is modified by swapping specific leads in the wiring junction box, following the technical diagram provided on the US Motors nameplate.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
