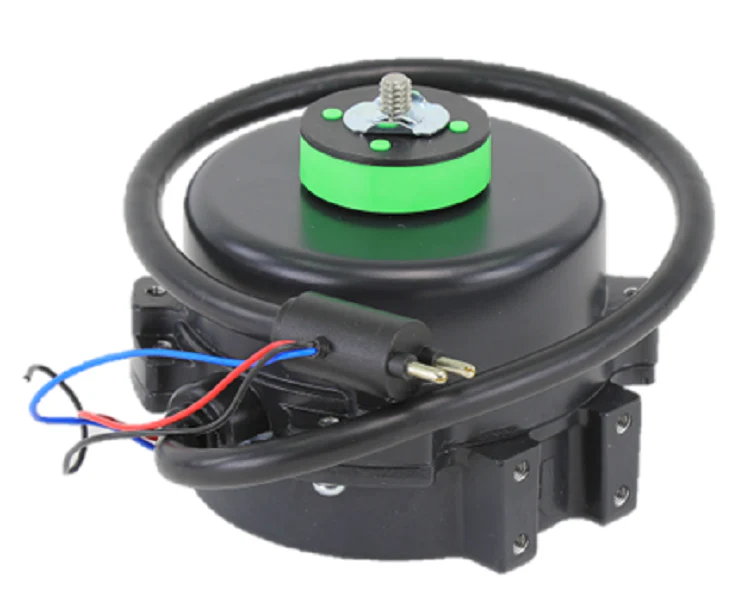

Nidec-US Motors EC5414E Motor
The Nidec-US Motors EC5414E Rescue ECM Motor is a high-efficiency refrigeration motor designed to provide versatile service solutions for commercial evaporator and condenser applications. Rated for 4-25W, this unit replaces a wide range of standard unit bearing motors, reducing the need for extensive truck stock. It features a dual voltage internal sensing circuit that operates on 115-230V without requiring manual jumper changes, ensuring seamless integration into varied site power requirements. The reversable rotation via lead configuration and variable speed capability of 1550/1650 RPM allow it to meet specific airflow demands across multiple refrigeration brands.
Built for harsh environments, the EC5414E is IP67 rated, making it dust-tight and capable of withstanding temporary submersion, which is critical for clogged drain pans. Its Totally Enclosed Air Over (TEAO) enclosure and robust ball bearing system ensure longevity under continuous duty. The motor comes with a universal mounting kit, including 1/4-20 threaded shafts, Elco front mounting options, and Hussmann back mounting compatibility, ensuring it fits standard fan hubs and brackets encountered in the field.
- Universal Compatibility: Replaces most 4W to 25W refrigeration condenser motors and evaporator fans with a single SKU.
- Advanced Protection: IP67 ingress protection safeguards against moisture failure in high-humidity and wash-down environments.
- Smart Voltage Sensing: Automatically detects 115V or 230V, preventing wiring errors and reducing installation time.
- Energy Efficiency: Up to 70% efficient compared to traditional shaded pole or PSC motors, lowering operating costs for the end-user.
- Flexible Installation: Features CWOSE REV (Clockwise/Counter-Clockwise) rotation and comes with all necessary hubs and isolators.
Common Questions:
What does the IP67 rating mean for this motor?
It indicates the motor is dust-tight and protected against water immersion up to 1 meter for 30 minutes, preventing premature failure during defrost cycles or tray overflows.
Can I use this to replace a 9W shaded pole motor?
Yes. The EC5414E replaces any motor within the 4 to 25 Watt range. Its brushless permanent magnet design provides superior torque and higher efficiency than the original part.
How do I change the rotation of the EC5414E?
Rotation is controlled by the wire lead connections. Following the included wiring diagram, simply connect the appropriate leads to set the motor to CW or CCW rotation from the shaft end.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $122.07
-65%$122.07
$42.72Nidec-US Motors EC5414E Motor
