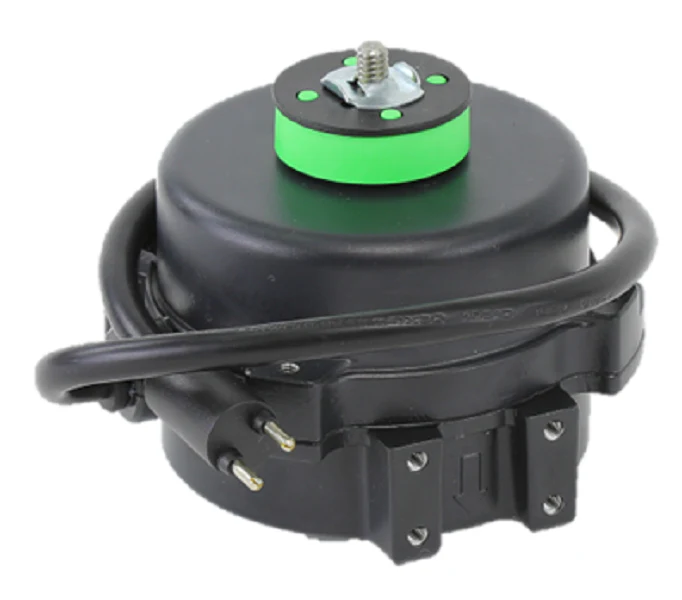

Nidec-US Motors EC5412E Motor
Upgrade your refrigeration service kits with the Nidec-US Motors EC5412E Rescue ECM Motor, a versatile universal drop-in replacement designed specifically for evaporator and condenser applications. This high-efficiency 4-25W ECM motor operates across a wide 115-230V dual voltage range without requiring manual connection changes, significantly reducing the need to carry multiple single-wattage motors in your van. Built with a TEAO (Totally Enclosed Air Over) enclosure and an IP67 rating, this unit is capable of withstanding submersion in water for up to 30 minutes, providing unmatched moisture protection in high-humidity environments. The CCWOSE (Counter-Clockwise Opposite Shaft End) rotation and 1550-1725 RPM range ensure compatibility with standard commercial refrigeration setups. Engineered with a robust ball bearing system and automatic thermal protection, the EC5412E delivers reliable performance in ambient temperatures ranging from -40°C to 55°C. For maximum installation flexibility, it features a universal mounting configuration, including standard 3-hole Elco and 4-hole Hussmann patterns.
Key Benefits- Inventory Consolidation: Replaces a wide array of 4W to 25W shaded pole and PSC motors with a single energy-efficient ECM solution.
- Dual-Voltage Capability: Auto-sensing 115/230V technology simplifies field installation and reduces wiring errors.
- Rugged Environmental Protection: The IP67 rated aluminum frame ensures reliable operation in wash-down and heavy condensation areas.
- Universal Compatibility: Includes 1/4-20 threaded shaft and hardware for both single and four-pin fan hubs.
- High Efficiency: Delivers up to 70% energy efficiency, lowering operational costs for the end-user compared to traditional motors.
Is this motor compatible with 50Hz systems?
Yes, the EC5412E is rated for 50/60 Hz operation, making it suitable for international applications and varying power grids.
What mounting patterns are supported?
It features universal mounting including the standard Elco top mount (3-hole) and Hussmann back mount (4-hole) configurations to fit most OEM brackets.
Does this motor include the fan hub adapters?
Yes, the Nidec EC5412E is packaged with adapters for both single-post and four-post fan hubs to ensure a seamless swap in the field.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
