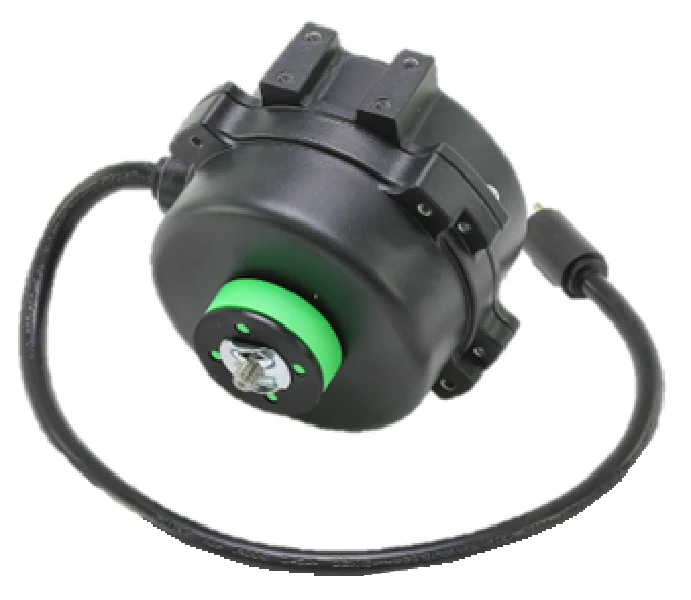

Nidec-US Motors EC5411E Motor
The Nidec-US Motors EC5411E is a high-efficiency ECM (Electronically Commutated Motor) designed as a high-performance replacement for evaporator and condenser fan applications. Operating at 115/230V with a dual-voltage capability, this motor delivers a variable speed range of 1550-1725 RPM. Built with a Totally Enclosed Air Over (TEAO) enclosure and IP66-rated water protection, it is engineered to withstand the rigorous moisture and temperature fluctuations common in commercial refrigeration. By utilizing brushless DC technology, the EC5411E achieves up to 65% energy efficiency, significantly reducing operating costs compared to standard shaded pole or PSC motors. Its versatile mounting system, featuring double mounting feet and multiple hub hole patterns, ensures a seamless fit for technicians upgrading existing HVACR equipment.
Key Benefits for Contractors:- Universal Voltage: Autosensing 115/230V capability reduces truck stock and simplifies field replacement.
- Exceptional Durability: The IP66 rating and ball bearing construction provide reliability in wash-down environments and extreme temperatures (-40°F to 130°F).
- Plug-and-Play Integration: Equipped with a Lyall plug and multiple fan hubs (single pin and 4-pin) for fast installation.
- Energy Savings: High-efficiency ECM technology lowers amperage draw, improving the overall SEER/EER of the refrigeration system.
Is the EC5411E a direct replacement for 4W to 25W motors?
Yes, this motor is designed to cover a broad output range from 4W to 25W, making it a highly versatile "one-motor" solution for various evaporator configurations.
What is the rotation of this motor?
This model is Clockwise Opposite Shaft End (CWOSE). Always verify the rotation requirements of your specific fan blade before installation to ensure proper airflow.
Does it handle moisture-heavy environments?
With its Totally Enclosed design and IP66 moisture protection rating, it is specifically built for the high-humidity conditions found inside reach-in and walk-in coolers.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $114.79
-65%$114.79
$40.18Nidec-US Motors EC5411E Motor
The Nidec-US Motors EC5411E is a high-efficiency ECM (Electronically Commutated Motor) designed as a high-performance replacement for evaporator and condenser fan applications. Operating at 115/230V with a dual-voltage capability, this motor delivers a variable speed range of 1550-1725 RPM. Built with a Totally Enclosed Air Over (TEAO) enclosure and IP66-rated water protection, it is engineered to withstand the rigorous moisture and temperature fluctuations common in commercial refrigeration. By utilizing brushless DC technology, the EC5411E achieves up to 65% energy efficiency, significantly reducing operating costs compared to standard shaded pole or PSC motors. Its versatile mounting system, featuring double mounting feet and multiple hub hole patterns, ensures a seamless fit for technicians upgrading existing HVACR equipment.
Key Benefits for Contractors:- Universal Voltage: Autosensing 115/230V capability reduces truck stock and simplifies field replacement.
- Exceptional Durability: The IP66 rating and ball bearing construction provide reliability in wash-down environments and extreme temperatures (-40°F to 130°F).
- Plug-and-Play Integration: Equipped with a Lyall plug and multiple fan hubs (single pin and 4-pin) for fast installation.
- Energy Savings: High-efficiency ECM technology lowers amperage draw, improving the overall SEER/EER of the refrigeration system.
Is the EC5411E a direct replacement for 4W to 25W motors?
Yes, this motor is designed to cover a broad output range from 4W to 25W, making it a highly versatile "one-motor" solution for various evaporator configurations.
What is the rotation of this motor?
This model is Clockwise Opposite Shaft End (CWOSE). Always verify the rotation requirements of your specific fan blade before installation to ensure proper airflow.
Does it handle moisture-heavy environments?
With its Totally Enclosed design and IP66 moisture protection rating, it is specifically built for the high-humidity conditions found inside reach-in and walk-in coolers.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
