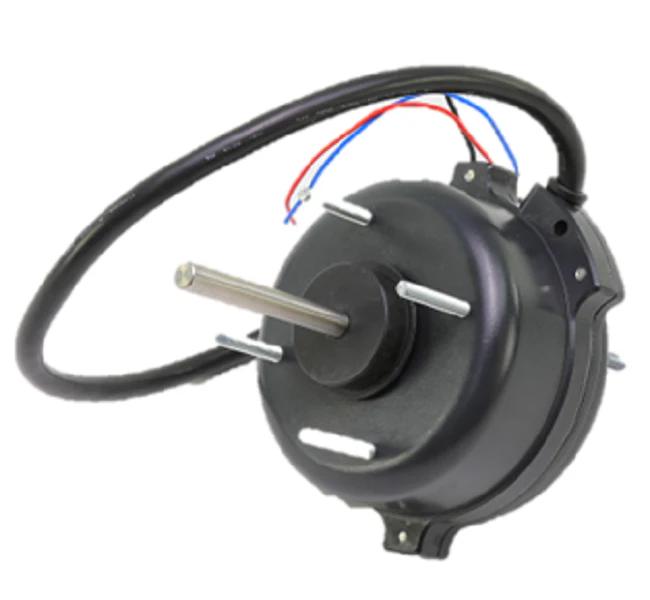

Nidec-US Motors EC5408E Motor
The Nidec-US Motors EC5408E ECM Motor is a high-efficiency brushless permanent magnet motor engineered for precision in fractional horsepower applications. This dual voltage 115/230V motor is a critical replacement for HVAC air handlers, furnaces, and fan coil units requiring between 1/15 and 1/25 HP. Built on a 33 frame, this electronically commutated motor provides variable-speed operation, allowing for optimized airflow control and significantly lower power consumption compared to standard shaded-pole or PSC motors. With a peak RPM of 1625 (configured for 1550 High / 800 Low), it maintains consistent torque across its operating range. The IP67 sealed enclosure ensures the internal bridge rectifier and control electronics are protected against moisture and dust ingress, making it suitable for demanding evaporator or light commercial condenser environments. The universal mounting and reversible rotation (CCW/CW) simplify field installation, ensuring compatibility with a wide array of OEM specifications.
Key Performance Benefits
- High-Efficiency ECM Technology: Reduces operational costs and heat output compared to induction motors.
- IP67 Rated Protection: Fully sealed against dust and immersion, extending service life in high-moisture HVACR applications.
- Dual Voltage Versatility: Operates on either 115V or 230V (50/60 Hz) without needing manual jumpers.
- Electronic Thermal Protection: Integrated circuitry prevents failure due to overheating or locked rotor conditions.
- Reversible Rotation: Field-adjustable rotation allows this single unit to replace multiple fixed-rotation SKUs.
Common Contractor Questions
Is a start capacitor required for this motor?
No, since the Nidec EC5408E is an electronically commutated motor (ECM), it utilizes internal electronics to manage starting torque; no external start or run capacitors are necessary.
Can this motor handle extreme ambient temperatures in unconditioned spaces?
Yes, the EC5408E is rated for an ambient temperature range of -40°C to 55°C, making it ideal for both refrigeration and heating applications.
What are the wiring requirements for speed control?
This FHP ECM features multiple speed taps and variable-speed capability. Always reference the M035TBN0131014B model number wiring diagram to ensure proper integration with your system's controller or thermostat.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $141.54
-65%$141.54
$49.54Nidec-US Motors EC5408E Motor
The Nidec-US Motors EC5408E ECM Motor is a high-efficiency brushless permanent magnet motor engineered for precision in fractional horsepower applications. This dual voltage 115/230V motor is a critical replacement for HVAC air handlers, furnaces, and fan coil units requiring between 1/15 and 1/25 HP. Built on a 33 frame, this electronically commutated motor provides variable-speed operation, allowing for optimized airflow control and significantly lower power consumption compared to standard shaded-pole or PSC motors. With a peak RPM of 1625 (configured for 1550 High / 800 Low), it maintains consistent torque across its operating range. The IP67 sealed enclosure ensures the internal bridge rectifier and control electronics are protected against moisture and dust ingress, making it suitable for demanding evaporator or light commercial condenser environments. The universal mounting and reversible rotation (CCW/CW) simplify field installation, ensuring compatibility with a wide array of OEM specifications.
Key Performance Benefits
- High-Efficiency ECM Technology: Reduces operational costs and heat output compared to induction motors.
- IP67 Rated Protection: Fully sealed against dust and immersion, extending service life in high-moisture HVACR applications.
- Dual Voltage Versatility: Operates on either 115V or 230V (50/60 Hz) without needing manual jumpers.
- Electronic Thermal Protection: Integrated circuitry prevents failure due to overheating or locked rotor conditions.
- Reversible Rotation: Field-adjustable rotation allows this single unit to replace multiple fixed-rotation SKUs.
Common Contractor Questions
Is a start capacitor required for this motor?
No, since the Nidec EC5408E is an electronically commutated motor (ECM), it utilizes internal electronics to manage starting torque; no external start or run capacitors are necessary.
Can this motor handle extreme ambient temperatures in unconditioned spaces?
Yes, the EC5408E is rated for an ambient temperature range of -40°C to 55°C, making it ideal for both refrigeration and heating applications.
What are the wiring requirements for speed control?
This FHP ECM features multiple speed taps and variable-speed capability. Always reference the M035TBN0131014B model number wiring diagram to ensure proper integration with your system's controller or thermostat.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
