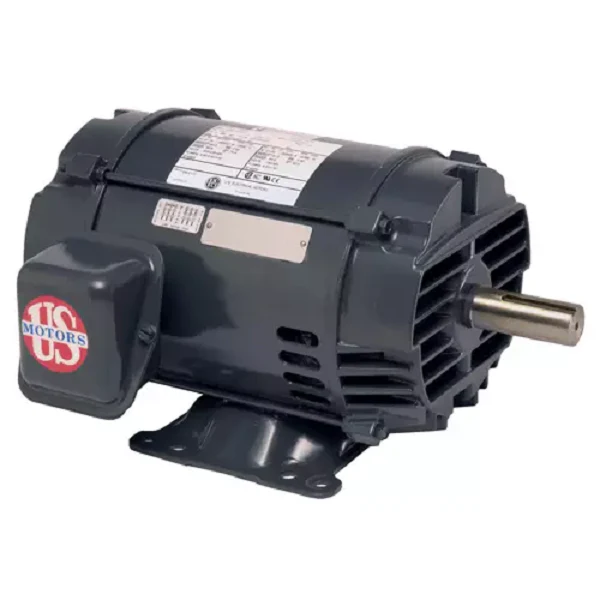

Nidec-US Motors D3P2D Motor
The Nidec-US Motors D3P2D Motor is a high-performance 3 HP three-phase motor designed for demanding commercial and industrial HVACR applications. Operating at 1770/1460 RPM with a dual-voltage 208-230/460V configuration, this unit provides the necessary torque for heavy-duty blowers, pumps, and compressors. Built on a 182T NEMA frame with a rigid mount, it serves as the direct replacement for E217V1, ensuring seamless mechanical fitment in existing systems. The Open Dripproof (ODP) enclosure allows for efficient cooling in clean, dry environments, while the ball bearing construction supports both horizontal and vertical mounting orientations. This reversible rotation motor draws 8.3-7.6/3.8 Amps, making it a reliable choice for contractors looking to maintain system efficiency with US Motors industrial motors and high-efficiency 3-phase electric motors.
Key Benefits
- Broad Compatibility: Engineered as a drop-in 182T frame motor replacement for the E217V1, reducing downtime during field service.
- Dual Frequency Versatility: Rated for 60Hz and 50Hz operation (1770/1460 RPM), suitable for various regional power requirements.
- Durable Internal Components: Equipped with high-grade ball bearings to handle radial loads and extend the service life of the drive assembly.
- Flexible Installation: Features reversible rotation capabilities, allowing on-site adjustment to match the driven equipment's directional needs.
Common Questions
What is the frame size and mounting for the D3P2D?
This motor uses a standard 182T NEMA frame with a rigid base mount, providing a stable footprint for high-torque industrial applications.
Can I use this motor in damp or outdoor environments?
The D3P2D features an Open Dripproof (ODP) enclosure. This design is intended for indoor use where moisture cannot enter the motor from an angle less than 15 degrees from vertical.
Is the D3P2D a direct match for the E217V1?
Yes, the D3P2D is the specific replacement for E217V1, matching the electrical specifications, RPM, and physical dimensions for a precise exchange.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
