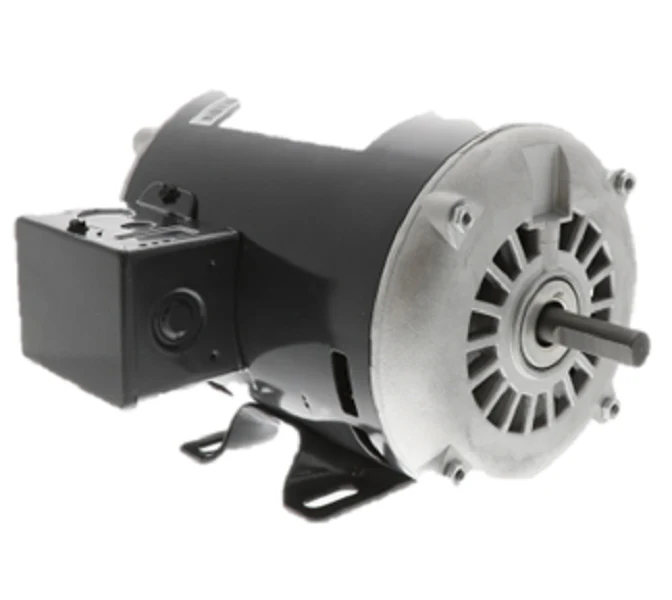

Nidec-US Motors D14P2B4 Motor
The Nidec-US Motors D14P2B4 is a professional-grade, 1/4 HP three-phase motor engineered for demanding commercial HVACR applications. Operating at a synchronous speed of 1725 RPM, this totally enclosed air over (TEAO) motor is designed for optimal performance in condenser fan setups where reliable heat dissipation is critical. It features a versatile 208-230/460V dual voltage rating, allowing for seamless integration into various three-phase power systems common in industrial environments. Built with a NEMA 48 frame, this direct drive motor utilizes high-grade ball bearings to handle high ambient temperatures and axial loads typical of rooftop units. The D14P2B4 model is a reliable replacement for OEM condenser fan motors, ensuring high-efficiency cooling and consistent airflow across the coil. Its Class B insulation and reversible rotation capabilities provide contractors with the flexibility needed for rapid field installation and long-term mechanical reliability in rigorous duty cycles.
- Multi-Voltage Versatility: Dual-rated for 208-230V and 460V configurations, reducing truck stock for three-phase HVAC motors.
- Durable Construction: Features a TEAO enclosure and ball bearings to protect internal components from moisture and airborne debris.
- High Torque Performance: Delivers consistent 1725 RPM output for static pressure applications, ensuring optimal condenser fan efficiency.
- Standardized Mounting: The 48-frame design with bolted base or stud mounting options allows for quick commercial motor replacement.
Common Questions
What are the wiring requirements for the Nidec D14P2B4?
This motor requires a three-phase power supply and should be wired according to the diagram on the nameplate for either 208-230V or 460V operation to ensure proper motor phase balance.
Can this motor be used in outdoor condenser units?
Yes, the totally enclosed air over design is specifically intended for placement within the airflow of a condenser fan, protecting the windings from environmental exposure.
Is the rotation reversible on the D14P2B4?
Yes, as a 3-phase induction motor, rotation can be changed by swapping any two power leads, making it compatible with various fan blade pitches.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $230.50
-65%$230.50
$80.67Nidec-US Motors D14P2B4 Motor
The Nidec-US Motors D14P2B4 is a professional-grade, 1/4 HP three-phase motor engineered for demanding commercial HVACR applications. Operating at a synchronous speed of 1725 RPM, this totally enclosed air over (TEAO) motor is designed for optimal performance in condenser fan setups where reliable heat dissipation is critical. It features a versatile 208-230/460V dual voltage rating, allowing for seamless integration into various three-phase power systems common in industrial environments. Built with a NEMA 48 frame, this direct drive motor utilizes high-grade ball bearings to handle high ambient temperatures and axial loads typical of rooftop units. The D14P2B4 model is a reliable replacement for OEM condenser fan motors, ensuring high-efficiency cooling and consistent airflow across the coil. Its Class B insulation and reversible rotation capabilities provide contractors with the flexibility needed for rapid field installation and long-term mechanical reliability in rigorous duty cycles.
- Multi-Voltage Versatility: Dual-rated for 208-230V and 460V configurations, reducing truck stock for three-phase HVAC motors.
- Durable Construction: Features a TEAO enclosure and ball bearings to protect internal components from moisture and airborne debris.
- High Torque Performance: Delivers consistent 1725 RPM output for static pressure applications, ensuring optimal condenser fan efficiency.
- Standardized Mounting: The 48-frame design with bolted base or stud mounting options allows for quick commercial motor replacement.
Common Questions
What are the wiring requirements for the Nidec D14P2B4?
This motor requires a three-phase power supply and should be wired according to the diagram on the nameplate for either 208-230V or 460V operation to ensure proper motor phase balance.
Can this motor be used in outdoor condenser units?
Yes, the totally enclosed air over design is specifically intended for placement within the airflow of a condenser fan, protecting the windings from environmental exposure.
Is the rotation reversible on the D14P2B4?
Yes, as a 3-phase induction motor, rotation can be changed by swapping any two power leads, making it compatible with various fan blade pitches.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
