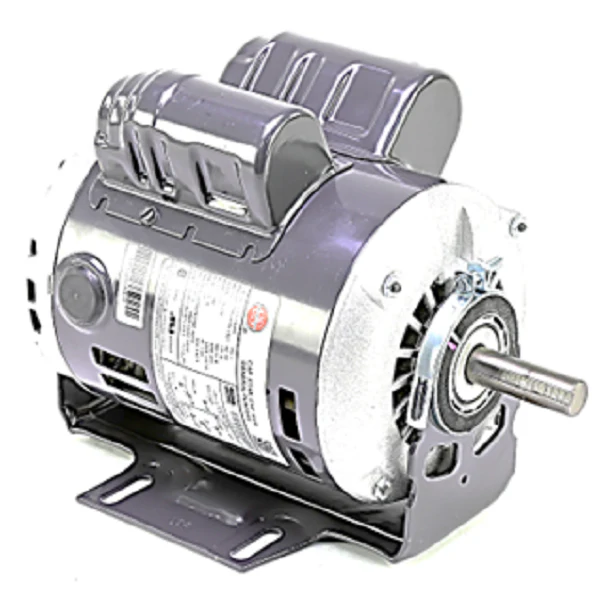

Nidec-US Motors D13CPA2P9 Motor
The Nidec-US Motors D13CPA2P9 is a high-performance 1/3 HP general purpose motor designed for continuous duty applications in demanding HVACR and industrial environments. Operating at a synchronous speed of 1800 RPM (1725 RPM nameplate), this single-phase AC motor features a versatile dual voltage 115/230V configuration, allowing for seamless integration into various electrical systems. Built with a NEMA 56 frame and a resilient base mount, it minimizes vibration and noise, making it an ideal replacement motor for air compressors, centrifugal pumps, blowers, and fans.
Engineering for durability, the D13CPA2P9 utilizes a capacitor start design for high starting torque and an Open Drip-Proof (ODP) enclosure to ensure optimal airflow while protecting internal components from falling moisture. The motor includes automatic reset thermal overload protection and Class B insulation, maintaining stable operation even at a 1.35 service factor. Its reversible rotation capability and keyed 5/8-inch shaft provide the mechanical flexibility veteran technicians require for field-side retrofits and original equipment maintenance.
Key Benefits- Versatile Power: Supports 115/230V dual voltage for flexible field wiring.
- High Torque Output: Capacitor start design provides the necessary break-away torque for heavy-load starters like compressors.
- Thermal Security: Integrated automatic reset thermal protection prevents winding damage during temporary overloads.
- Quiet Operation: The resilient base mount effectively isolates vibration for sensitive air-handling applications.
- Industrial Build: Features a rugged NEMA 56 frame with ball bearings for extended life and CW/CCW reversible rotation.
Is the D13CPA2P9 compatible with 208V systems?
Yes, this motor is rated for 115/208-230V operation, making it suitable for both residential 230V and commercial 208V single-phase circuits.
What is the shaft size for pulley attachment?
The motor features a standard 5/8-inch diameter keyed shaft, compatible with most industrial sheaves and couplings.
Can this motor be mounted in any orientation?
While the ODP enclosure is designed to protect against vertical moisture, the resilient base is best suited for horizontal mounting to maintain proper bearing alignment and vibration dampening.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $419.60
-65%$419.60
$146.86Nidec-US Motors D13CPA2P9 Motor
The Nidec-US Motors D13CPA2P9 is a high-performance 1/3 HP general purpose motor designed for continuous duty applications in demanding HVACR and industrial environments. Operating at a synchronous speed of 1800 RPM (1725 RPM nameplate), this single-phase AC motor features a versatile dual voltage 115/230V configuration, allowing for seamless integration into various electrical systems. Built with a NEMA 56 frame and a resilient base mount, it minimizes vibration and noise, making it an ideal replacement motor for air compressors, centrifugal pumps, blowers, and fans.
Engineering for durability, the D13CPA2P9 utilizes a capacitor start design for high starting torque and an Open Drip-Proof (ODP) enclosure to ensure optimal airflow while protecting internal components from falling moisture. The motor includes automatic reset thermal overload protection and Class B insulation, maintaining stable operation even at a 1.35 service factor. Its reversible rotation capability and keyed 5/8-inch shaft provide the mechanical flexibility veteran technicians require for field-side retrofits and original equipment maintenance.
Key Benefits- Versatile Power: Supports 115/230V dual voltage for flexible field wiring.
- High Torque Output: Capacitor start design provides the necessary break-away torque for heavy-load starters like compressors.
- Thermal Security: Integrated automatic reset thermal protection prevents winding damage during temporary overloads.
- Quiet Operation: The resilient base mount effectively isolates vibration for sensitive air-handling applications.
- Industrial Build: Features a rugged NEMA 56 frame with ball bearings for extended life and CW/CCW reversible rotation.
Is the D13CPA2P9 compatible with 208V systems?
Yes, this motor is rated for 115/208-230V operation, making it suitable for both residential 230V and commercial 208V single-phase circuits.
What is the shaft size for pulley attachment?
The motor features a standard 5/8-inch diameter keyed shaft, compatible with most industrial sheaves and couplings.
Can this motor be mounted in any orientation?
While the ODP enclosure is designed to protect against vertical moisture, the resilient base is best suited for horizontal mounting to maintain proper bearing alignment and vibration dampening.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
