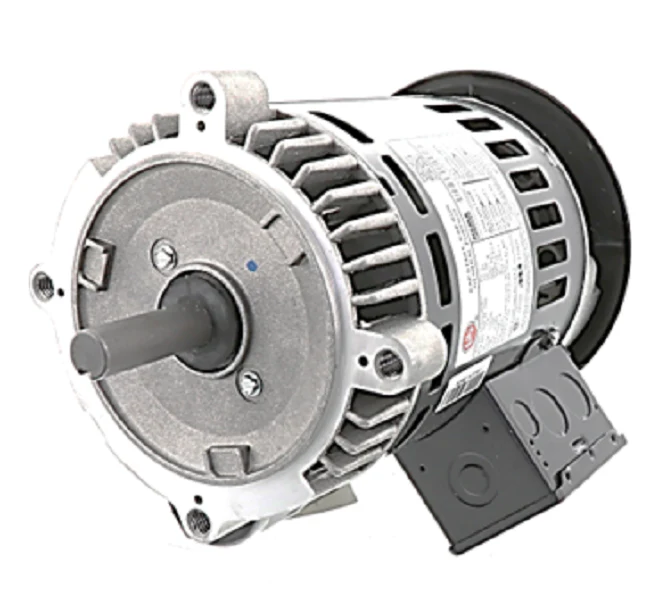

Nidec-US Motors D13CP2PCR Motor
The Nidec-US Motors D13CP2PCR Motor is a rugged, 1/3 HP general purpose motor designed for demanding commercial and industrial HVACR applications. Operating at a 1725 RPM base speed (4-pole), this single-phase AC motor features a dual-voltage 115/230V nameplate, providing versatility for various field installations. Built with a NEMA 56C frame and a standard C-Face mount, it excels in powering centrifugal pumps, blowers, and air compressors where a reliable, non-failing drive is required. The Open Drip-Proof (ODP) enclosure facilitates optimal ventilation, maintaining a 40°C ambient temperature rating during continuous duty cycles. Utilizing double-sealed ball bearings and Class B insulation, this capacitor start motor is engineered to handle high starting torque and axial loads without premature wear. For contractors performing a Nidec motor cross reference, the D13CP2PCR provides a direct fit for 56C keyed-shaft configurations requiring a heavy-duty rolled steel frame.
Key Benefits
- Dual-Voltage Capability: Flexible 115/230V wiring allows for seamless integration into existing single-phase electrical layouts.
- Industrial-Grade Construction: Features a high-service factor and Class B insulation to withstand thermal stress in tight mechanical rooms.
- High Starting Torque: Designed with a capacitor start mechanism to initiate heavy loads in pump and ventilation cycles.
- Universal 56C Mounting: Standard C-Face flange ensures direct compatibility with various pump heads and gear reducers.
- Reversible Rotation: Field-adjustable rotation provides the flexibility needed to match the specific requirements of your equipment.
Common Questions
What is the shaft size for the D13CP2PCR?
This motor features a standard 5/8" diameter keyed shaft typical of the NEMA 56C frame, ensuring compatibility with standard pulleys and couplings.
Can this motor be used in outdoor environments?
The ODP (Open Drip-Proof) rating means it is designed for indoor use or protected environments where moisture does not fall at an angle greater than 15 degrees. For direct exposure to weather, a TEFC motor is recommended.
Is this a direct replacement for Emerson branded motors?
Yes, as Nidec acquired the Emerson motor division, this US Motors D13CP2PCR is the current production standard for legacy Emerson 1/3 HP 56C models.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
