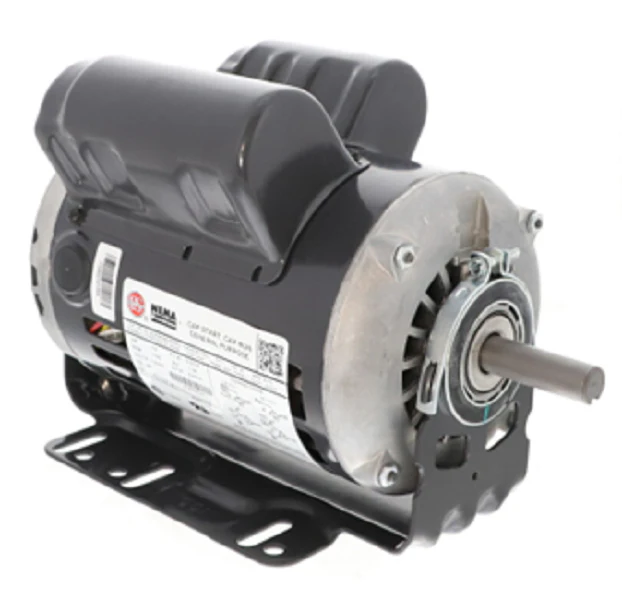

Nidec-US Motors D12CP2PH9 Motor
The Nidec-US Motors D12CP2PH9 is a heavy-duty 1/2 HP general purpose motor designed for industrial and commercial HVACR applications requiring a reliable 1800 RPM synchronous speed. Built on a rugged 56H frame, this single phase motor features a TEFC (Totally Enclosed Fan Cooled) enclosure, making it ideal for environments with high dust or moisture levels. The dual voltage 115/230V capability and reversible rotation offer maximum field flexibility for contractors. This capacitor-start motor delivers the high starting torque necessary for belt-drive fans, blowers, and pumps. With a 1.25 service factor and Class F insulation, the D12CP2PH9 is engineered to handle thermal stress and provide long-term reliability in demanding continuous duty cycles. Its ball bearing construction ensures smooth operation and supports both horizontal and vertical mounting configurations common in HVACR motor replacement scenarios.
Key Benefits
- High Starting Torque: Capacitor-start design ensures reliable startup under heavy loads for pumps and compressors.
- TEFC Enclosure: Protects internal components from contaminants, ensuring longevity in harsh mechanical rooms.
- Dual Voltage Versatility: Supports 115V or 230V wiring, simplifying inventory for service technicians.
- Industrial Build Quality: The 56H frame provides a rigid mounting base to minimize vibration and shaft misalignment.
- Thermal Protection: Manual reset thermal overload protection prevents winding failure during locked-rotor or overload conditions.
Common Questions
What are the mounting specifications for the 56H frame?
The 56H frame features standard 56-frame mounting holes but includes additional slots to accommodate a wider range of base mounting dimensions, making it a versatile choice for various equipment footprints.
Can this motor be used for outdoor condenser fans?
While the TEFC enclosure provides excellent protection against debris, ensure the motor is oriented correctly to prevent moisture accumulation in the bearings, or verify if an OAO motor is more appropriate for your specific airflow requirement.
Is the rotation reversible in the field?
Yes, the D12CP2PH9 motor features a simplified wiring scheme that allows for easy CW or CCW rotation adjustment by swapping internal leads at the terminal board.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
