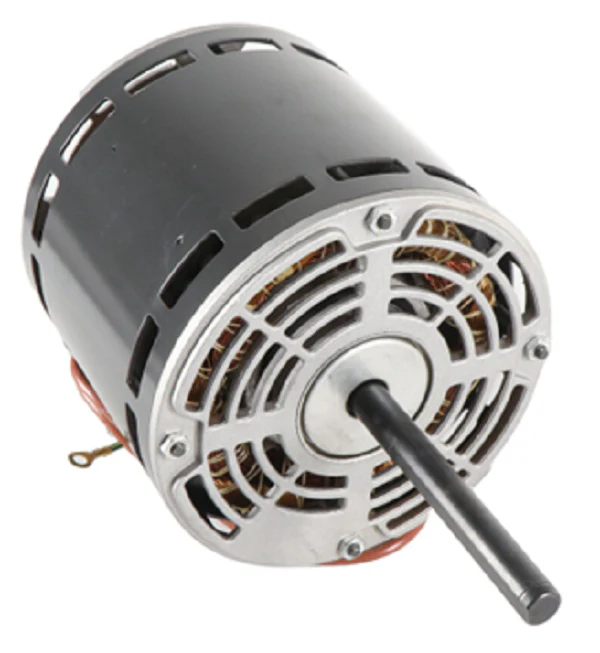

Nidec-US Motors CA3413 Condenser Motor
The Nidec US Motors CA3413 is a heavy-duty 1/2 HP condenser fan motor engineered for demanding residential and light commercial HVAC applications. Operating at 115Vac and a synchronous 1075 RPM, this Permanent Split Capacitor (PSC) motor is designed for high-ambient performance and continuous duty cycles. As a specialized HVAC replacement motor, the CA3413 features a CCW Lead End (CCWLE) rotation and typically requires a 10 MFD 370V capacitor for optimal torque and efficiency. Its 48-frame design and automatic reset thermal overload protection ensure reliable operation in exterior condensing units where heat dissipation is critical. This motor is a direct drop-in for many OEM condenser fan motors, providing a rugged solution for technicians troubleshooting failed units in the field. Its robust construction minimizes bearing wear and maintains consistent airflow, which is essential for protecting the compressor and maintaining system pressures.
- High-Efficiency PSC Design: Reduces power consumption and heat generation compared to standard shaded pole motors.
- Universal Mounting: Features standard 48-frame bolt patterns for seamless integration into various outdoor units.
- Internal Thermal Protection: Automatic reset feature prevents winding failure during temporary overvoltage or ventilation blockages.
- Class B Insulation: Rated for high-temperature environments typical of rooftop or ground-level condenser applications.
- Reversible Lead End Configuration: Optimized for standard CCW rotation requirements to ensure correct blade pitch performance.
Common Questions
What capacitor is required for the US Motors CA3413?
This 1/2 HP 115V motor typically uses a 10 MFD / 370 VAC run capacitor to achieve proper phase shift and starting torque.
Can I use this motor to replace a higher RPM condenser motor?
It is critical to match the 1075 RPM rating exactly; using a different speed can lead to improper static pressure and eventual compressor damage.
Is the CA3413 suitable for vertical shaft-up installations?
Yes, this Nidec model is designed with ball or sleeve bearings suitable for multiple mounting orientations found in modern outdoor HVAC units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
