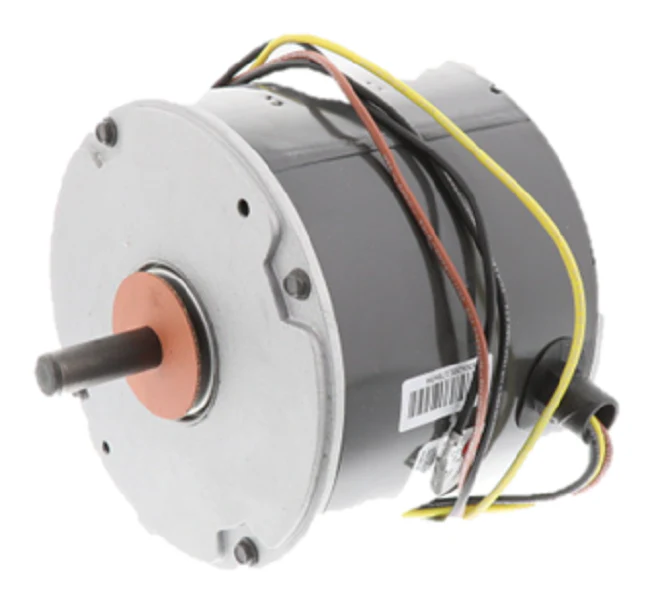

Nidec-US Motors CA3412 Motor
The Nidec-US Motors CA3412 Motor is a high-performance 1/5 HP condenser motor engineered for demanding HVACR applications. Operating at 825 RPM with a single-speed configuration, this 208-230V Permanent Split Capacitor motor provides the reliable torque necessary for residential and commercial condensing units. As a veteran-grade OEM replacement motor, it is a direct substitute for Carrier HC37GE208 and Carrier HC37GE208A units. The 48Y frame motor features a CW lead end rotation (which corresponds to CCW shaft end rotation) and a 5.6-inch diameter, ensuring a Precise fit in direct-drive fan assemblies. Built with sleeve bearings and a Totally Enclosed Air Over (TEAO) enclosure, this motor is designed to withstand extreme ambient temperatures and outdoor debris. For optimal performance and to maintain field reliability, it is critical to install a new 7.5 MFD/370VAC capacitor during the motor swap.
Key Benefits- Universal Compatibility: Serves as a primary cross-reference for Carrier, Genteq 5KCP39HGZ037S, and US Motors K55HXKNA-0219 models.
- Thermal Protection: Equipped with an automatic reset thermal overload protector to prevent winding failure during high-head pressure conditions.
- Rugged Enclosure: The TEAO design protects internal components from rain and contaminants, extending the service life of the fan motor.
- Contractor-Grade Lead Length: Features 40-inch leads for flexible routing in various condenser cabinet configurations.
What rotation is the CA3412 motor?
This motor is CW Lead End (CWLE), which is equivalent to CCW Shaft End (CCWSE). Always verify the fan blade pitch before installation to ensure proper airflow direction.
Does this motor include a run capacitor?
No, the capacitor is sold separately. This 1/5HP motor requires a 7.5 MFD / 370V run capacitor for proper starting torque and efficiency.
Can I use this to replace a 1075 RPM motor?
No. The CA3412 is an 825 RPM motor. Replacing a higher-speed motor with a lower-speed model will result in insufficient heat rejection and potential compressor damage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
