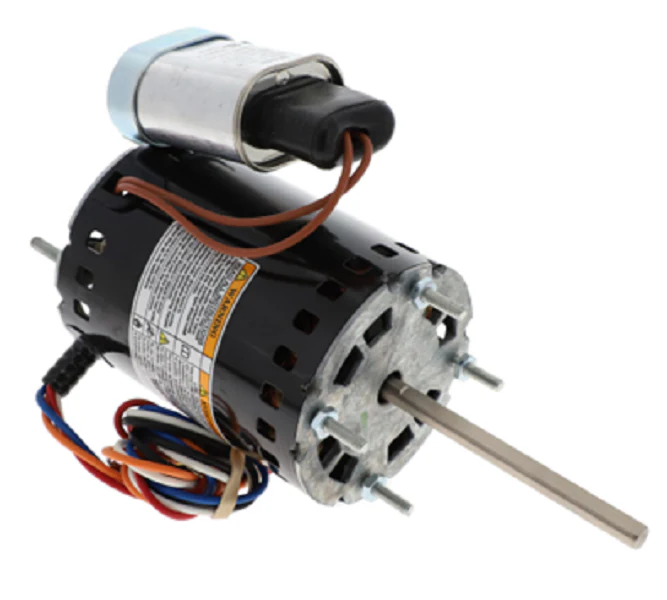

Nidec-US Motors 9657 Motor
The Nidec-US Motors 9657 is a precision-engineered permanent split capacitor (PSC) motor designed for high-efficiency operation in residential and light commercial HVAC systems. Operating at 230V with a 1/10 HP output and a synchronous speed of 1550 RPM, this unit is built for continuous duty applications where reliability is non-negotiable. It features a single-speed configuration with a standard 3.3-inch diameter frame, making it a drop-in replacement for many OEM fan and blower assemblies. The motor utilizes Class B insulation and is thermally protected to handle high ambient internal temperatures without premature winding failure. Contractors should note the CWLE (Clockwise Lead End) rotation and the standard stud mounting or hub mounting options, ensuring compatibility with a wide range of fan blades and housings. Performance-wise, the low amp draw design helps maintain system efficiency while providing the consistent torque required for condenser fan or evaporator blower cycles.
- Optimized Performance: The 1550 RPM motor speed is calibrated for specific airflow requirements, minimizing noise while maximizing heat transfer.
- Durable Construction: Features ball bearing mechanisms (or high-grade sleeve bearings depending on the specific revision) for reduced friction and extended service life in vertical or horizontal orientations.
- Universal Versatility: The 9657 motor model serves as a reliable cross-reference for numerous HVAC blower motors and Fasco replacements.
- Precision Control: High-starting torque ensures the motor reaches operating speed quickly under load, reducing wear on the run capacitor.
Common Questions
What capacitor is required for the US Motors 9657?
Most variations of this 230v HVAC motor require a 5 MFD / 370V run capacitor. Always check the nameplate on the specific unit to match the microfarad rating exactly for proper phase displacement.
Can this motor be used in outdoor condenser units?
The Nidec 9657 is generally rated for totally enclosed or open air over (OAO) environments. Ensure the enclosure type matches your application to prevent moisture ingress in outdoor settings.
Is the rotation reversible on this 1/10 HP motor?
This specific model is typically CWLE (Clockwise Lead End). If your application requires CCW rotation, verify the lead configuration or look for a reversible Nidec replacement motor with similar mounting specs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $99.69
-65%$99.69
$34.89Nidec-US Motors 9657 Motor
The Nidec-US Motors 9657 is a precision-engineered permanent split capacitor (PSC) motor designed for high-efficiency operation in residential and light commercial HVAC systems. Operating at 230V with a 1/10 HP output and a synchronous speed of 1550 RPM, this unit is built for continuous duty applications where reliability is non-negotiable. It features a single-speed configuration with a standard 3.3-inch diameter frame, making it a drop-in replacement for many OEM fan and blower assemblies. The motor utilizes Class B insulation and is thermally protected to handle high ambient internal temperatures without premature winding failure. Contractors should note the CWLE (Clockwise Lead End) rotation and the standard stud mounting or hub mounting options, ensuring compatibility with a wide range of fan blades and housings. Performance-wise, the low amp draw design helps maintain system efficiency while providing the consistent torque required for condenser fan or evaporator blower cycles.
- Optimized Performance: The 1550 RPM motor speed is calibrated for specific airflow requirements, minimizing noise while maximizing heat transfer.
- Durable Construction: Features ball bearing mechanisms (or high-grade sleeve bearings depending on the specific revision) for reduced friction and extended service life in vertical or horizontal orientations.
- Universal Versatility: The 9657 motor model serves as a reliable cross-reference for numerous HVAC blower motors and Fasco replacements.
- Precision Control: High-starting torque ensures the motor reaches operating speed quickly under load, reducing wear on the run capacitor.
Common Questions
What capacitor is required for the US Motors 9657?
Most variations of this 230v HVAC motor require a 5 MFD / 370V run capacitor. Always check the nameplate on the specific unit to match the microfarad rating exactly for proper phase displacement.
Can this motor be used in outdoor condenser units?
The Nidec 9657 is generally rated for totally enclosed or open air over (OAO) environments. Ensure the enclosure type matches your application to prevent moisture ingress in outdoor settings.
Is the rotation reversible on this 1/10 HP motor?
This specific model is typically CWLE (Clockwise Lead End). If your application requires CCW rotation, verify the lead configuration or look for a reversible Nidec replacement motor with similar mounting specs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
