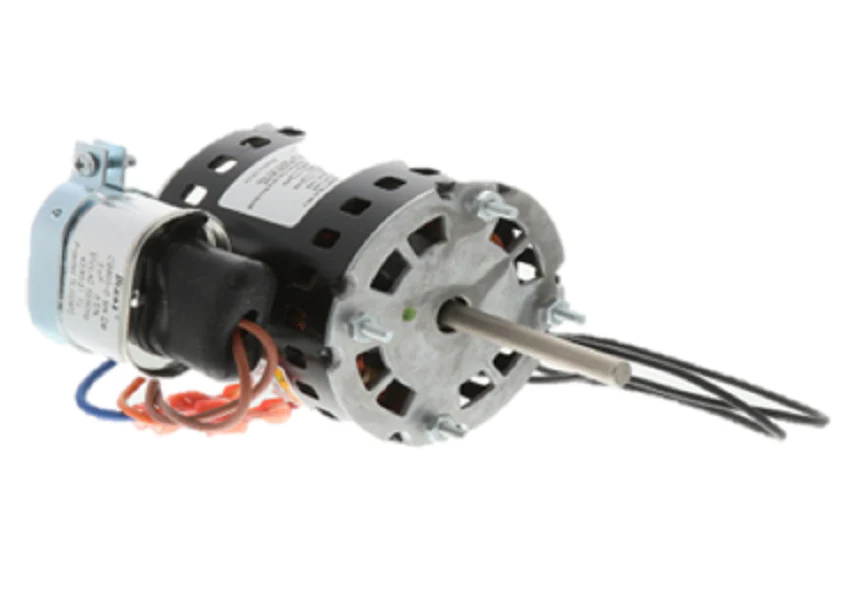

Nidec-US Motors 9632 Blower Motor
Upgrade or replace your industrial refrigeration and HVAC fan systems with the Nidec-US Motors 9632 Blower Motor. Engineered for continuous duty in demanding environments, this 1/20 HP blower motor operates at a fixed 1550 RPM on standard 115V single-phase power. As a Permanent Split Capacitor (PSC) motor, it delivers high electrical efficiency and reliable starting torque, making it a staple for refrigeration evaporator applications and general ventilation. The NEMA 33 frame construction features a 3.3-inch diameter and a rugged rolled steel shell, designed to fit compact spaces without compromising thermal management. Utilizing an Open Air Over (OAO) enclosure, this unit relies on the driven airflow for superior heat dissipation, supported by high-grade ball bearings for extended service life in vertical or horizontal orientations. This motor includes 12-inch leads and a 3 MFD capacitor for immediate field integration, while the reversible rotation capability provides the versatility needed for various OEM cross-references.
- Universal Application: The reversible rotation and 4-stud mounting pattern make it an ideal service replacement for various HVAC/R units.
- Industrial Build Quality: Features automatic reset thermal overload protection to prevent winding failure during high-ambient operation.
- Efficient PSC Design: High-efficiency 0.85-amp draw helps reduce operational overhead while maintaining consistent airflow.
- Compact Form Factor: The 3.3-inch shell length and 3.3-inch diameter allow for installation in tight evaporator coils and blower housings.
Common Questions
Is the rotation directional?
No, this motor is CW/CCW reversible, allowing you to match the specific requirements of your fan blade or blower wheel in the field.
What is the shaft size for this motor?
The Nidec 9632 features a 3/16-inch diameter shaft with a 2.38-inch length, suitable for standard refrigeration fan assembly hub depths.
Does this motor require a separate capacitor?
This unit is a PSC blower motor and requires a 3 MFD / 370V capacitor, which is included to ensure proper phase displacement and torque.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $74.71
-65%$74.71
$26.15Nidec-US Motors 9632 Blower Motor
Upgrade or replace your industrial refrigeration and HVAC fan systems with the Nidec-US Motors 9632 Blower Motor. Engineered for continuous duty in demanding environments, this 1/20 HP blower motor operates at a fixed 1550 RPM on standard 115V single-phase power. As a Permanent Split Capacitor (PSC) motor, it delivers high electrical efficiency and reliable starting torque, making it a staple for refrigeration evaporator applications and general ventilation. The NEMA 33 frame construction features a 3.3-inch diameter and a rugged rolled steel shell, designed to fit compact spaces without compromising thermal management. Utilizing an Open Air Over (OAO) enclosure, this unit relies on the driven airflow for superior heat dissipation, supported by high-grade ball bearings for extended service life in vertical or horizontal orientations. This motor includes 12-inch leads and a 3 MFD capacitor for immediate field integration, while the reversible rotation capability provides the versatility needed for various OEM cross-references.
- Universal Application: The reversible rotation and 4-stud mounting pattern make it an ideal service replacement for various HVAC/R units.
- Industrial Build Quality: Features automatic reset thermal overload protection to prevent winding failure during high-ambient operation.
- Efficient PSC Design: High-efficiency 0.85-amp draw helps reduce operational overhead while maintaining consistent airflow.
- Compact Form Factor: The 3.3-inch shell length and 3.3-inch diameter allow for installation in tight evaporator coils and blower housings.
Common Questions
Is the rotation directional?
No, this motor is CW/CCW reversible, allowing you to match the specific requirements of your fan blade or blower wheel in the field.
What is the shaft size for this motor?
The Nidec 9632 features a 3/16-inch diameter shaft with a 2.38-inch length, suitable for standard refrigeration fan assembly hub depths.
Does this motor require a separate capacitor?
This unit is a PSC blower motor and requires a 3 MFD / 370V capacitor, which is included to ensure proper phase displacement and torque.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
