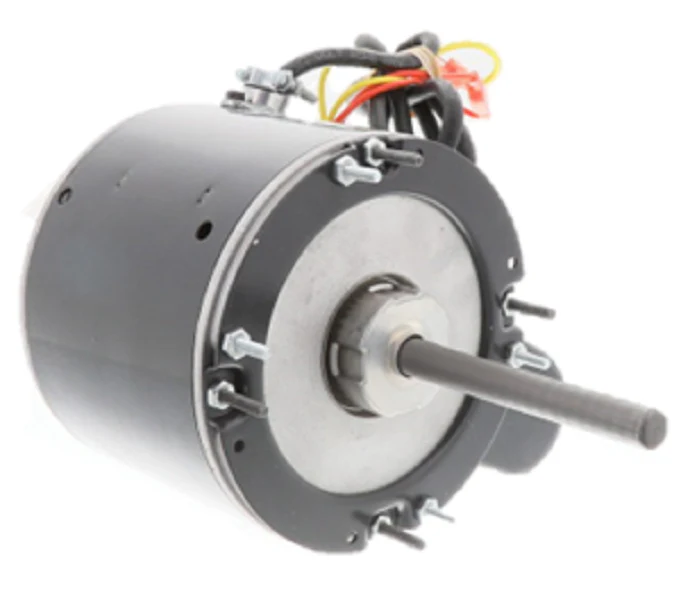

Nidec-US Motors 9035 Blower Motor
The Nidec-US Motors 9035 Blower Motor is a professional-grade 1/4 HP HVAC motor engineered for high-static pressure environments and continuous-duty air-moving applications. This 115V single-phase motor operates at 1075 RPM, utilizing a Permanent Split Capacitor (PSC) design to maintain high electrical efficiency while reducing operational noise in commercial unit heaters and furnace blower replacements. Built with a 48Y NEMA frame and a rugged steel chassis, the 9035 is a TEAO (Totally Enclosed Air Over) unit, ensuring internal components remain protected from dust and debris while leveraging the system's airflow for optimal cooling.
For contractors performing field service, this model features automatic thermal overload protection to prevent winding failure during over-amp conditions. The 1/2-inch diameter shaft and hub/stud mounting configuration provide broad compatibility with various fan blade and blower wheel assemblies. With a 3.6 Amp full-load rating and Class B insulation, this U.S. Motors blower motor is a reliable drop-in solution for maintaining airflow integrity in light industrial and residential air-handling systems.
Key Benefits for HVACR Technicians
- High-Efficiency PSC Design: Reduces energy consumption and heat generation compared to shaded-pole alternatives.
- TEAO Enclosure: Engineered for maximum protection in the airstream, ideal for 115V unit heater motors.
- Precision Ball Bearings: Located on the opposite drive end (ODE) to ensure long-term shaft alignment and quiet performance.
- Automatic Reset: Integrated thermal protection eliminates manual resets after temporary overheating events.
- Universal 48Y Frame: Provides a versatile mounting footprint for HVAC blower motor replacement.
Common Questions
What is the difference between TEAO and Open Drip Proof?
A TEAO (Totally Enclosed Air Over) motor like the 9035 is sealed to prevent air exchange between the inside and outside of the frame, requiring the driven air to flow over it for cooling, whereas ODP motors have vents that allow air to pass through the windings.
Can this motor be used for multi-speed applications?
This specific 9035 model is a single-speed motor rated at 1075 RPM. If your system requires multiple speed taps, verify the wiring schematic before installation.
What capacitor is required for the Nidec 9035?
This PSC motor requires a specific run capacitor (typically 5 MFD/370V, though you must check the nameplate) to ensure proper starting torque and running efficiency.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $273.15
-65%$273.15
$95.60Nidec-US Motors 9035 Blower Motor
