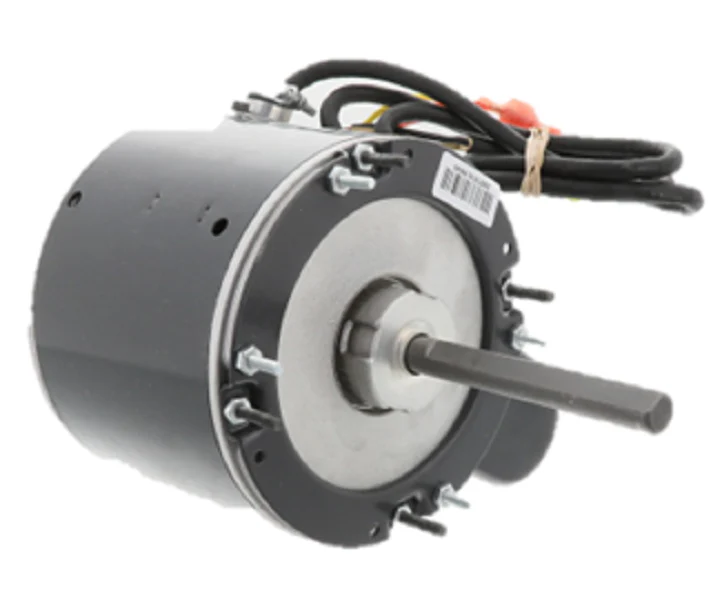

Nidec-US Motors 9034 Blower Motor
The Nidec-US Motors 9034 Blower Motor is a high-performance 1/6 HP unit heater fan motor engineered for reliability in demanding commercial and industrial environments. Operating at 115V and a base speed of 1075 RPM, this single-phase PSC motor features a robust 48Y NEMA frame size. The Totally Enclosed Air Over (TEAO) enclosure prevents contaminants from entering the motor housing, making it an ideal choice for direct drive blower applications where moisture and debris are prevalent. Built for continuous duty, this reversible blower motor utilizes an automatic reset thermal overload protector to ensure system safety and prevent winding damage during high-load conditions.
For service technicians, the US Motors 9034 is a versatile HVAC replacement motor that simplifies stock management. It features extended mounting studs and hub rings for flexible installation, along with a reversible rotation capability via quick connects. This 6-pole motor comes equipped with ball bearings for reduced friction and a 370V capacitor for optimized starting torque and efficiency. Whether you are servicing unit heaters or centrifugal ventilation systems, this permanent split capacitor motor delivers the consistent airflow required for professional-grade HVACR maintenance.
Key Benefits- Enhanced Durability: The TEAO enclosure and ball bearing design provide long-term protection against harsh environmental conditions.
- Versatile Compatibility: Reversible rotation and 48Y frame with multiple mounting options (hub/stud) fit a wide range of OEM unit heaters.
- Built-in Safety: Integrated automatic thermal overload protection prevents motor failure due to overheating.
- Efficient Performance: Optimized PSC design ensures continuous duty operation with lower energy consumption.
What is the frame size of the Nidec 9034 motor?
The US Motors 9034 features a 48Y NEMA frame with a 5.6-inch diameter, allowing it to fit standard blower housing configurations.
Can I change the rotation of the 9034 blower motor?
Yes, this is a reversible blower motor. The rotation can be easily swapped between CW and CCW using the provided quick-connect leads.
Does this motor include a capacitor?
This 115V PSC motor is typically supplied with the required 370V capacitor to ensure proper startup and run efficiency.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
