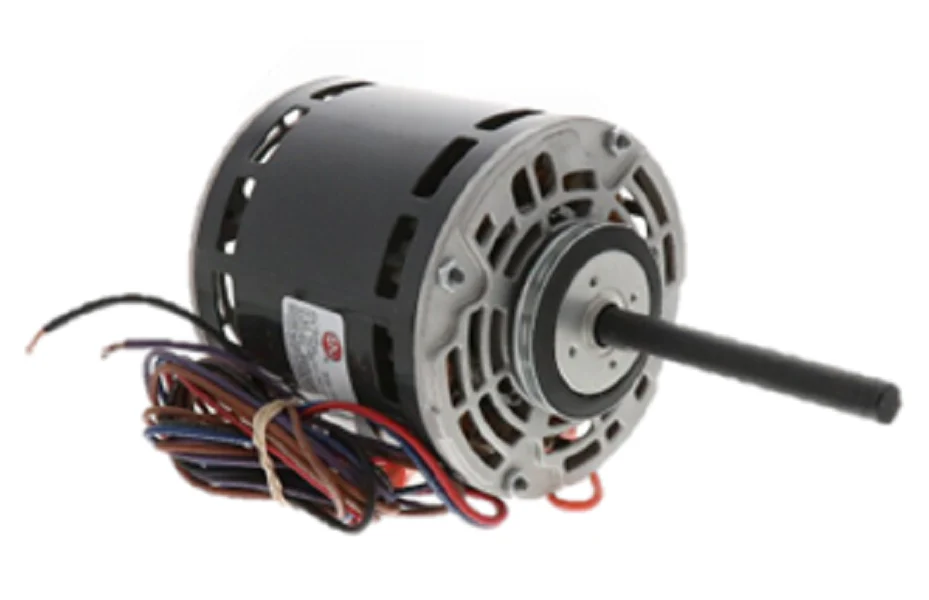

Nidec-US Motors 8952 Condenser Motor
The Nidec-US Motors 8952 Condenser Motor is a high-performance 1/5 HP direct drive fan motor specifically engineered for residential and commercial HVACR applications. Built on a 42Y NEMA frame with a 5.0-inch diameter rolled steel body, this 1075 RPM motor provides reliable performance in central air conditioning and refrigeration systems. As a Permanent Split Capacitor (PSC) motor, it operates efficiently at 208-230V, drawing 1.6 Amps at 60 Hz. This unit is an ideal technical replacement for HBDQ5777; the slight horsepower increase to 1/5 HP ensures robust airflow without compromising system performance or electrical integrity.
Designed for professional installation, the 8952 / K048TTW4147012B features a versatile hub or stud mount configuration and a 4-inch flat shaft with a 1/2-inch diameter. The Open Air Over (OAO) enclosure facilitates optimal cooling, while the self-aligning sleeve bearings and Class B insulation support longevity in demanding environments. This single-phase HVAC motor is configured for counterclockwise (CCW) rotation from the lead end and includes automatic reset thermal overload protection to prevent winding failure during operation.
Key Benefits
- Broad Compatibility: Efficiently crosses from HBDQ5777, making it a versatile 1/5 HP motor replacement for several OEM condensing units.
- Technical Reliability: Features automatic overload protection and a 1.0 service factor for consistent operation under load.
- Flexible Mounting: The 42Y frame motor supports both stud and hub mounting, simplifying field retrofits.
- Durable Construction: Engineered with a rolled steel frame and self-aligning bearings to reduce vibration and extend component life.
Common Questions
Is the Nidec 8952 motor reversible?
While some 42Y frame motors are multi-speed or reversible, the 8952 is specifically designated for CCW rotation from the lead end. Always verify the wiring diagram on the nameplate before installation.
Can I use this 1/5 HP motor to replace a lower horsepower motor?
Yes, replacing a slightly smaller motor with this 1/5 HP 1075 RPM unit is acceptable as it provides the necessary torque without overloading the circuit, provided the voltage and frame size match.
What capacitor is required for the Nidec 8952?
As a PSC motor, this unit requires a run capacitor (typically 5 MFD / 370V, verify nameplate) for proper torque and efficiency.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
